Texas Instruments DRV8214EVM Evaluation Module

Texas Instruments DRV8214EVM Evaluation Module is designed to evaluate the DRV8214 brushed DC motor driver with stall detection and ripple counting. This evaluation module is programmed and configured to work unusually and begin spinning motors immediately. The DRV8214 driver is an integrated motor driver with an N-channel H-bridge, charge pump, current sense output, current regulation, and protection circuitry. The DRV8214EVM module comes with a GUI to control the motor driver easily. This evaluation module is ideal for brushed DC motors, solenoid, and relay driving, portable printers, Point-of-Sale (POS) devices, battery powered DC motor applications.

Features

On-board 3.3V LDO for digital voltage supply
eZ-FET lite USB-based on-board emulator for ease of programming and debugging MSP430 microcontroller
1.65V to 11V operating motor supply voltage range
4A peak, 2A RMS high output current capability
Ripple counting for position monitoring and motor speed regulation

Adjustable op-amp gain for high-accuracy current sensing down to 10mA
Main signal header with removable shunts to disconnect main signals going to the motor driver IC from the MCU
GUI software to control EVM and DRV IC
Supports 1.8V, 3.3V, and 5V logic inputs

Applications

Brushed DC motor, solenoid, and relay driving
Water and gas meters
Electronic smart locks
Electronic and robotic toys
Infusion pumps and other portable medical equipment
Electric toothbrushes

Beauty and grooming
Portable printers
Point-of-Sale (POS) devices
Battery-powered DC motor application

Texas Instruments DRV8214EVM Evaluation Module

Features

Applications

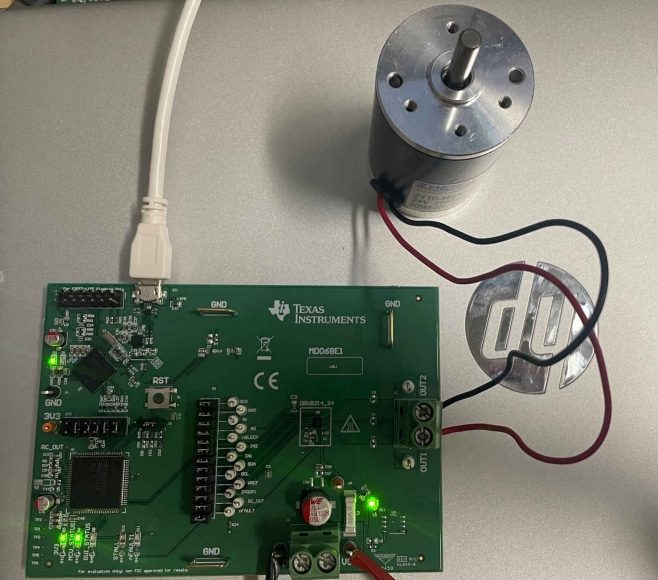

Hardware setup
