Texas Instruments DLPC230-Q1 DLP® Automotive DMD Controllers

Texas Instruments DLPC230-Q1 DLP® Automotive DMD Controllers are part of two DMD chipsets, the DLP5530-Q1 (interior display applications, such as HUD) and DLP5531-Q1 (exterior lighting applications, such as high-resolution headlight). Both these chipsets include a 0.55” DMD and the TPS99000-Q1 System Management and Illumination controller.

The TI DLPC230-Q1 DLP Automotive DMD Controllers integrates an embedded processor with error code correction (SECDED ECC), allowing host control and real-time feedback, on-chip diagnostics, and system monitoring functions. The need for external DRAM is eliminated via the included on-chip SRAM. With the TPS99000-Q1, the DLPC230-Q1 supports high dynamic range dimming of over 5000:1 for HUD applications. Sub-LVDS 600MHz DMD interface allows high DMD refresh rates to generate seamless and brilliant digital images while simultaneously reducing radiated emissions.

Features

Qualified for automotive applications
AEC-Q100 qualified with the following results:
- Device temperature grade 2: –40°C to 105°C ambient operating temperature
- Device HBM ESD classification level 2
- Device CDM ESD classification level C4B
DMD Display controller supporting:
- DLP5530-Q1 Automotive interior display chipset
- DLP5531-Q1 Automotive exterior lighting chipset
Video processing
- Scales input image to match DMD resolution
- Bezel adjustment up ±50% vertical image position and ±10% horizontal reducing the need for mechanical alignment (HUD)
- Support for pixel doubling or quadrupling to allow low-resolution video input
- Gamma correction
Embedded processor with error correction (ECC)
- On-chip diagnostic and self-test capability
- System diagnostics including temperature monitoring, device interface monitoring, and photodiode monitoring
- Integrated management of smooth dimming
- Configurable GPIO

No external RAM required, internal SRAM for image processing
600MHz Sub-LVDS DMD interface for low power and emission
Spread-spectrum clocking for reduced EMI
Video input interface
- Single openLDI (FPD-Link I) port up to 110MHz
- 24-bit RGB parallel interface up to 110MHz
Configurable host control interface
- Serial peripheral interface (SPI) 10MHz
- I²C (400kHz)
- Host IRQ signal to provide real-time
Feedback for critical system errors
Interface to TPS99000-Q1 system management and illumination controller

Applications

Wide field of view and augmented reality
Head-up Display (HUD)
High-resolution headlight

Texas Instruments DLPC230-Q1 DLP® Automotive DMD Controllers

Features

Applications

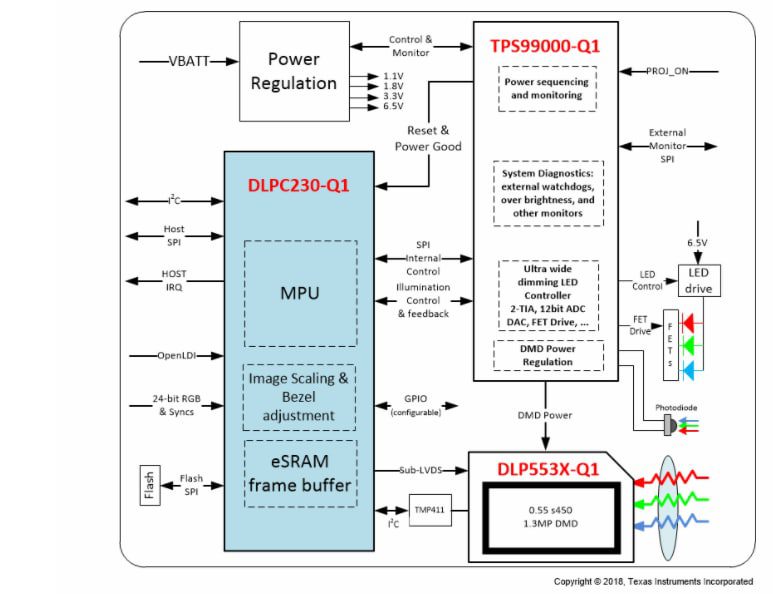

Block Diagram
