Texas Instruments DLP651LE Digital Micromirror Device (DMD)

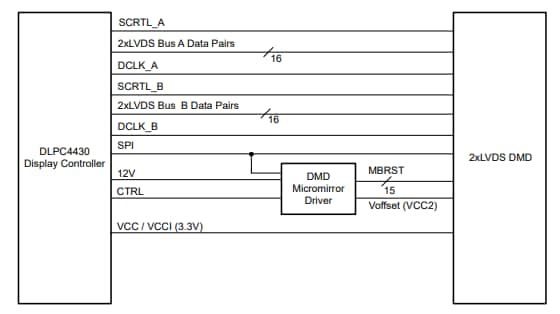

Texas Instruments DLP651LE Digital Micromirror Device (DMD) is a digitally controlled Micro-Electro-Mechanical System (MEMS) Spatial Light Modulator (SLM) that features a 0.65-inch diagonal micromirror array. This DMD device enables a WXGA (1280 x 800) display solution. The DLP651LE chipset includes the DLPC4430 display controller, the DLPA100 power and motor driver, and the DLPA200 micromirror driver. The chipset is ideal for applications that require a 16:10 aspect ratio with excellent brightness. This DMD device operates from 0°C to 90°C temperature range and comes in a 22.30mm x 32.20mm FYM (149) package. The DLP651LE is RoHS and REACH compliant. This DMD device is used in smart lighting, education projectors, and business projectors.
