Texas Instruments DLP471TEEVM DLP Evaluation Module (EVM)

Texas Instruments DLP471TEEVM Evaluation Module (EVM) offers a reference design to enable faster development for users of the DLPC7540 chips. When combined with the DLPC7540EVM the user can accelerate the prototyping time of a DLP 0.47-inch 4K UHD system. The Texas Instruments DLP471TEEVM provides a solution for evaluating the 0.47-inch 4K UHD DMD, which is designed to pair with the DLPC7540EVM and can display SPLASH, test patterns, and video from the HDMI source on the DMD.

Features

4K UHD (3840 × 2160) display resolution
5.4µm micromirror pitch
±17° micromirror tilt (relative to a flat surface)

Bottom illumination
High-speed serial interface (HSSI) input data bus

Major Components of the DLP471TEEVM

• DLP471TE 0.47-inch 4K UHD DMD
• Two flex cables designed to connect the DLP471TEEVM to the DLPC7540EVM
• TPS65145 used to generate the DMD’s offset, reset, and bias voltages

Required Equipment

Power supply – Required for evaluation operation
Micro-USB cable: A to Micro B USB cable – Required for GUI interface
Optics

Illumination module and source
XPR actuator

Texas Instruments DLP471TEEVM DLP Evaluation Module (EVM)

Features

Major Components of the DLP471TEEVM

Required Equipment

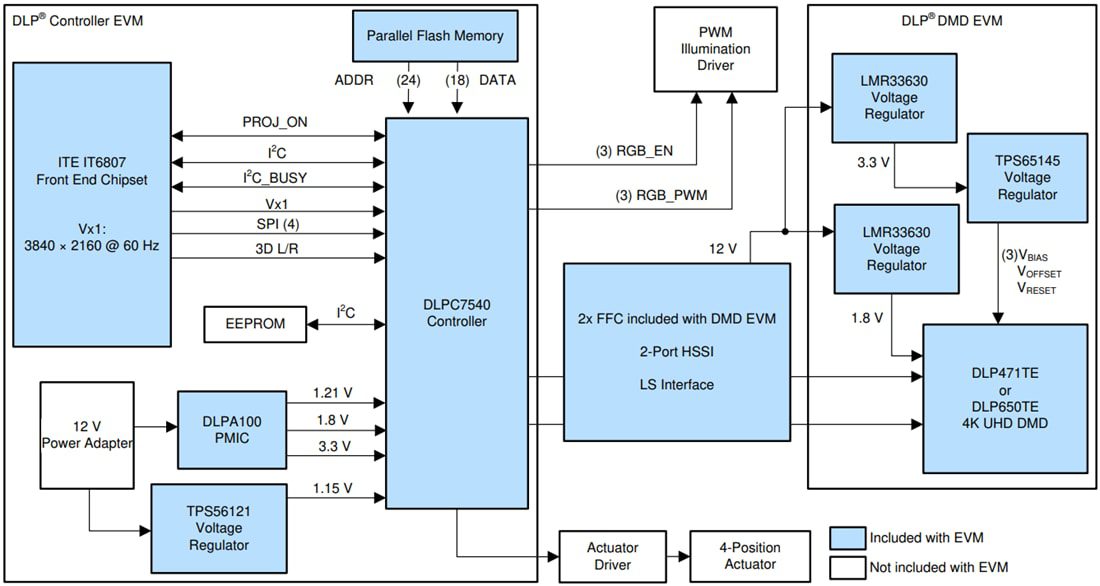

System Block Diagram
