Texas Instruments DLP3010LC Digital Micromirror Device (DMD)

Texas Instruments DLP3010LC Digital Micromirror Device (DMD) is a digitally controlled micro-opto-electromechanical system (MOEMS) spatial light modulator (SLM). When coupled to an appropriate optical system, the DMD displays a very crisp and high quality image or video. This DMD is a component of the chipset comprising the DMD, DLPC3478 display and light controller, and DLPA200x/DLPA300x PMIC/LED driver. The compact physical size of this DMD coupled with the controller and the PMIC/LED driver provides a complete system solution that enables small form factor, low power, and high-resolution, light-control applications like such as 3D scanners.

Features

0.3 Inch (7.93mm) diagonal micromirror array
- 1280 × 720 array of aluminum micrometer-sized mirrors, in an orthogonal layout
- 5.4 micron micromirror pitch
- ±17° micromirror tilt (relative to flat surface)
- Side illumination for optimal efficiency and optical engine size
- Polarization independent aluminum micromirror surface

8-Bit SubLVDS input data bus
Dedicated DLPC3478 display and light controller and DLPA200x or DLPA300x PMIC/LED driver for reliable operation
Halogen-free

Applications

Integrated display and 3D depth capture
Smart phone, tablets, laptop, camera
Battery-powered mobile accessory
3D depth capture: 3D camera, 3D reconstruction, AR/VR, dental scanner

3D machine vision: robotics, metrology, in-line inspection (AOI)
3D biometrics: facial and finger print recognition
Light exposure: 3D printers, programmable spatial and temporal light exposure

Texas Instruments DLP3010LC Digital Micromirror Device (DMD)

Features

Applications

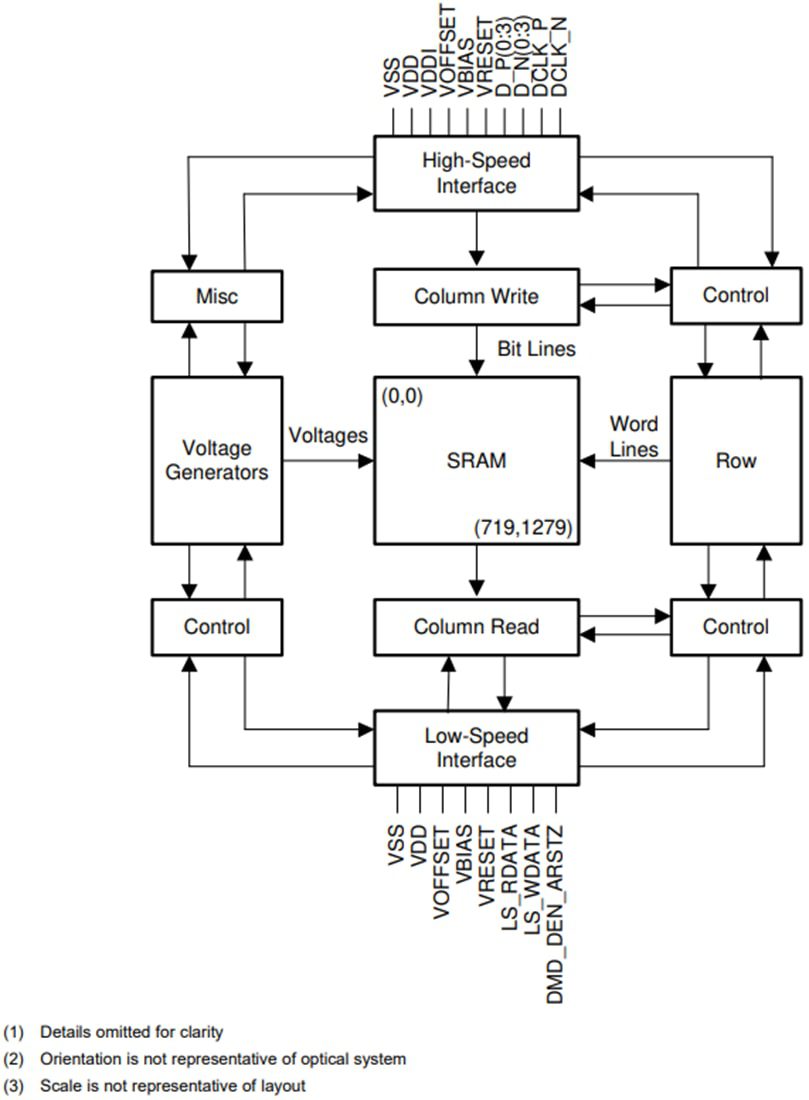

Functional Block Diagram
