Texas Instruments DAC39RF10EVM Evaluation Module

Texas Instruments DAC39RF10EVM Evaluation Module is configured to evaluate the operation of the DAC39RF10 DAC. The DAC39RF10 is a dual-channel, 16-bit DAC that can be used as a single-channel or dual-channel non-interpolation DACs. The device can also be used to interpolate DACs in direct RF sampling or baseband mode. Furthermore, the maximum input data rate is 20.48Gsps in single channel mode or 10.24Gsps in dual channel mode or baseband mode.

The TI DAC39RF10EVM evaluation module can use used with the TSW14J59EVM board (pattern generator board). TSW14J59EVM can quickly and easily interface with the DAC39RF10EVM.

Features

Onchip Balun coupled analog output to allow for a variety of sources and frequencies
Easy-to-use software GUI to configure the DAC39RF10, LMX1204, and LMK04828 devices for a variety of configurations through a USB interface
Quickly evaluate DAC performance through High-Speed Data Converter Pro software

Simple connection to TSW14J59EVM data pattern generator card
Device register programming through USB connector and FTDI USB-to-SPI bus translator with an option to program from FGPA using SPI through FMC+ connector

Kit Contents

Evaluation board (EVM)
Mini-USB cable
Power cable

USB Type-C™ cable
FTDI dongle to program the DAC EVM with FTDI

Required Equipment

TSW14J59EVM data capture board and related items
High-Speed Data Converter Pro software
PC computer running Microsoft^® Windows^® 10

Low-noise signal generator for DEVCLK (Sampling clock), TI recommends Rohde & Schwarz^® SMA100B
Signal-path cables, SMA or BNC (or both SMA and BNC)

Texas Instruments DAC39RF10EVM Evaluation Module

Features

Kit Contents

Required Equipment

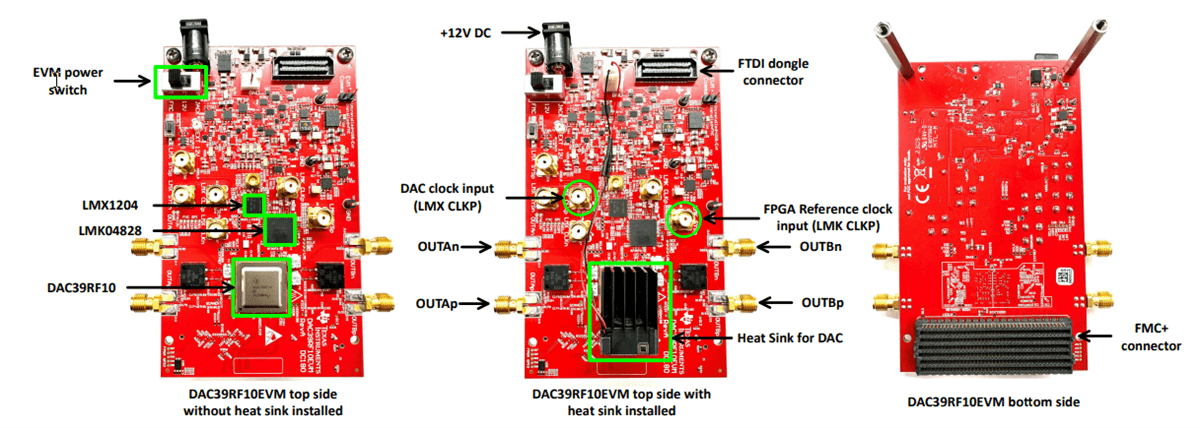

KEY COMPONENTS

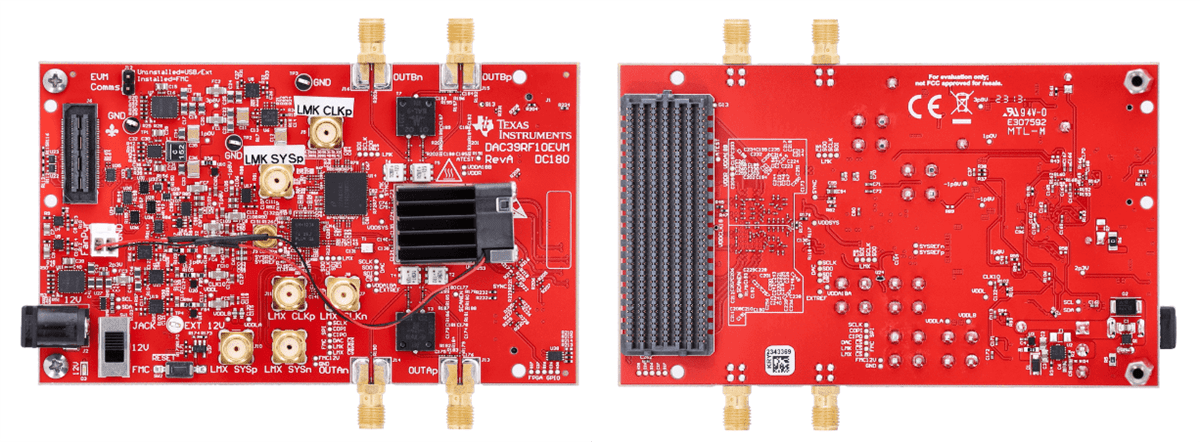

PCB Layout
