Texas Instruments CSD95485RWJ NexFET™ Power Stage

Texas Instruments CSD95485RWJ NexFET™ Power Stage is a highly optimized design for use in high-power, high-density synchronous buck converters. The device integrates the driver IC and the power MOSFETs to complete the power stage switching function. This combination produces a high-current, high-efficiency, and high-speed switching capability in a small 5mm × 6mm outline package. The Texas Instruments CSD95485RWJ also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. The PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.

Features

75A continuous operating current capability
Over 95% system efficiency at 30A
High-frequency operation (up to 1.25MHz)
Diode emulation function
Temperature-compensated bi-directional current sense
Analog temperature output
Fault monitoring
3.3V and 5V PWM signal compatible
Tri-state PWM input

Integrated bootstrap switch
Optimized dead time for shoot-through protection
High-density QFN 5mm × 6mm footprint
Ultra-low inductance package
System optimized PCB footprint
Thermally enhanced topside cooling
RoHS compliant with lead-free terminal plating
Halogen-free

Applications

Multiphase synchronous buck converters
High-frequency applications
High-current, low-duty cycle applications

POL DC-DC converters
Memory and graphic cards
Desktop and server VR12.x / VR13.x V-core synchronous buck converters

Texas Instruments CSD95485RWJ NexFET™ Power Stage

Features

Applications

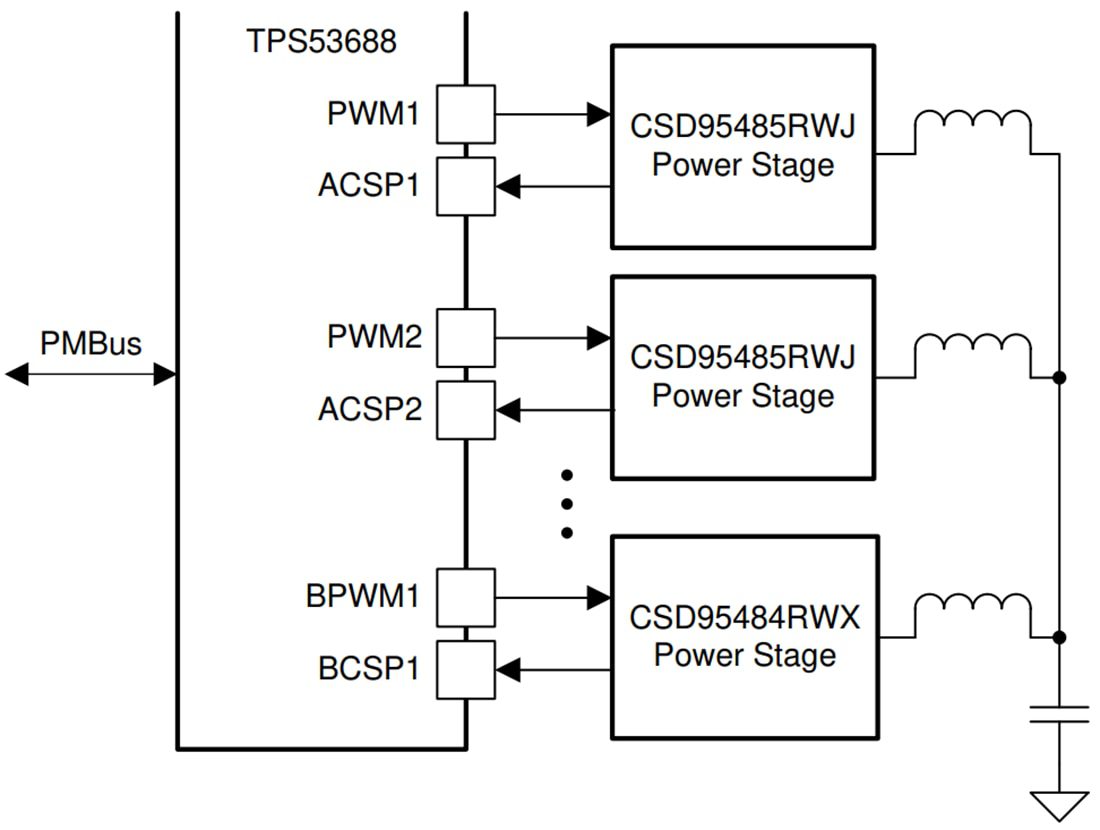

Application Diagram
