Texas Instruments CSD95420RCB Buck NexFET™ Power Stage

Texas Instruments CSD95420RCB Buck NexFET™ Power Stage is highly optimized for high-power, high-density synchronous buck converters. This product integrates the driver device and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 4mm × 5mm outline package. The Texas Instruments CSD95420RCB integrates accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. The optimized PCB footprint helps reduce design time and simplifies the completion of the overall system design.

Features

50A peak continuous current
Over 94% system efficiency at 15A
High-frequency operation (up to 1.75MHz)
Diode emulation function
Temperature-compensated bi-directional current sense
Analog temperature output
Fault monitoring
3.3V and 5V PWM signal compatible
Tri-state PWM input
Integrated bootstrap switch

Optimized deadtime for shoot-through protection
QFN package
- High-density
- 4mm × 5mm
- Ultra-low-inductance
- System-optimized PCB footprint
- Thermally enhanced tooling
- RoHS compliant
- Lead-free terminal plating
- Halogen Free

Applications

Multiphase synchronous buck converters
High-frequency applications
High-current, low-duty cycle applications
Point-of-load DC-DC converters

Memory and graphic cards
Desktop and server VR13.x / VR14.x V-Core synchronous buck converters

Texas Instruments CSD95420RCB Buck NexFET™ Power Stage

Features

Applications

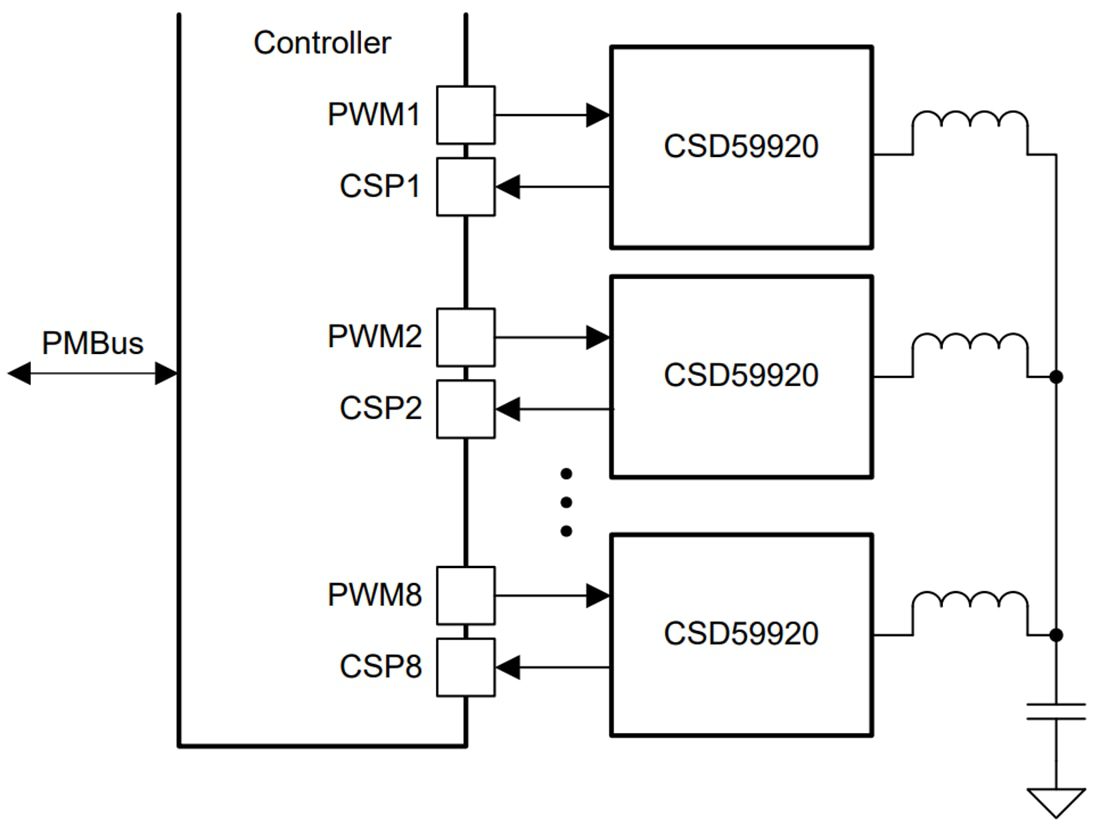

Simplified Application
