Texas Instruments bq77207EVM Evaluation Module (EVM)

Texas Instruments bq77207EVM Evaluation Module (EVM) is a complete evaluation system for the bq77207, a 3-series to 7-series cell Li-Ion battery protection integrated circuit. The circuit module includes one Texas Instruments bq77207 integrated circuit (IC), thermistor, and all other onboard components necessary to signal the condition from overcharge, over-discharge, and over-temperature in a 7-series cell Li-ion or Li-polymer battery pack.

Features

3-series to 7-series lithium-ion protector with over-voltage, under-voltage, over-temperature, and open-wire protections

Terminal blocks for input connection
Active high outputs on header pins for evaluation

Required Equipment

DC power supply, 0V to 32V at 250mA
DC voltmeter
Test leads to connect equipment

Texas Instruments bq77207EVM Evaluation Module (EVM)

Features

Required Equipment

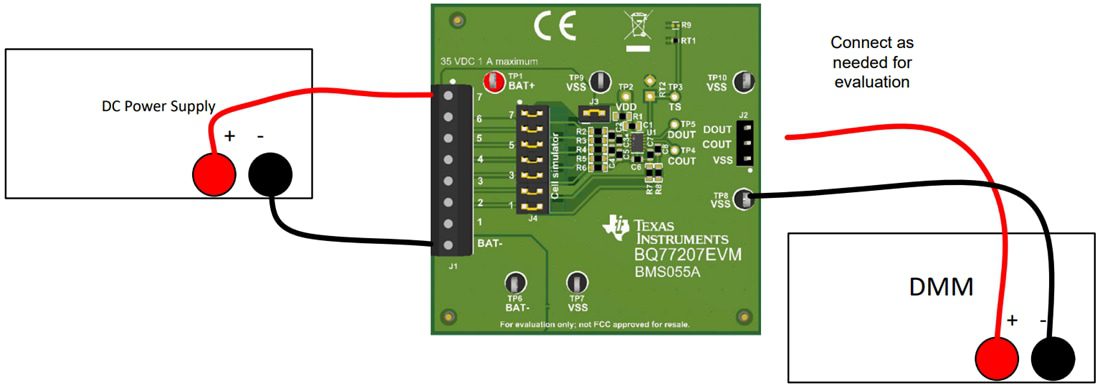

Basic Setup
