Texas Instruments bq25620EVM/bq25622EVM Evaluation Modules

Texas Instruments bq25620EVM/bq25622EVM Evaluation Modules allow users to evaluate the bq25620 and bq25622. The bq25620EVM/bq25622EVM Evaluation Modules are complete charger modules with connections for the optional EV2400 interface board controller. The TI bq25620EVM/bq25622EVM Evaluation Modules are designed for the bq25620 and bq25622 I²C-controlled single-cell chargers with NVDC power path management, an integrated ADC, and OTG output.

Features

Evaluation module for the BQ25620 or BQ25622 devices
Narrow VDC (NVDC) power path management for powering the systems and charging the battery
Supports I2C communication for systems configuration and status reporting
Test points for key signals available for testing purposes

Jumpers for easy configuration
One push-button for wake-up and reset input with adjustable timers
Charge status (STAT) and Power Good (PG) LEDS for charging monitoring
Connections for EV2400 or USB2ANY interface board controllers

Texas Instruments bq25620EVM/bq25622EVM Evaluation Modules

Features

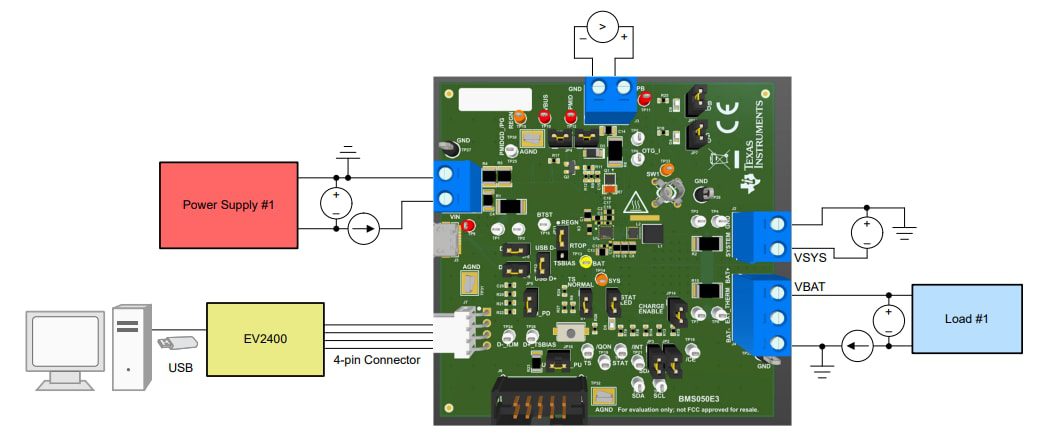

Test Setup

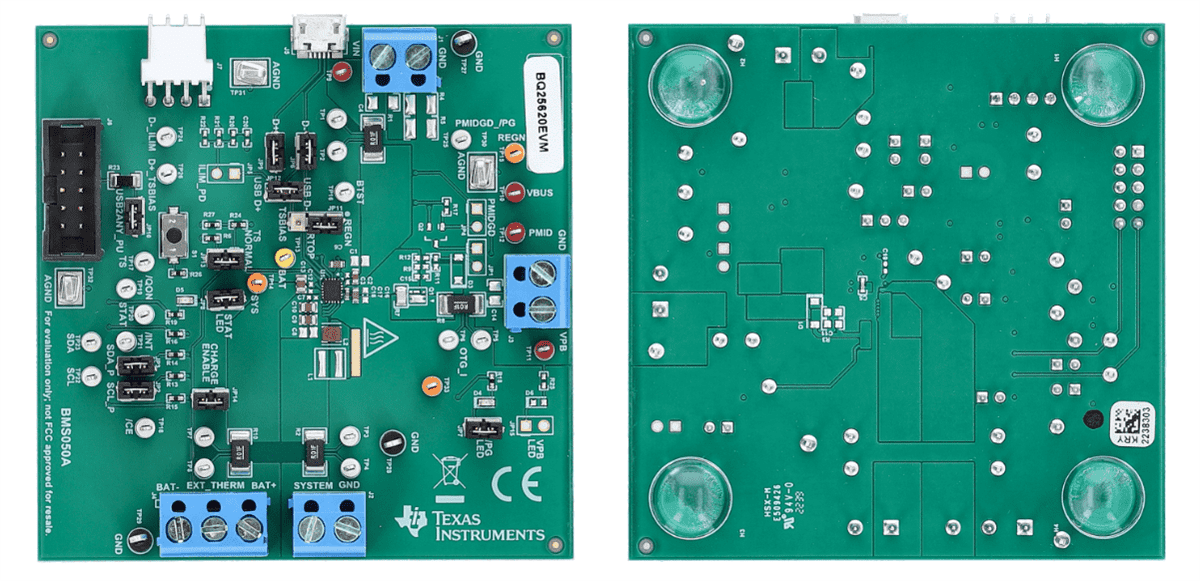

PCB Layout
