Texas Instruments BP-DAC81402EVM & BP-DAC61404EVM Evaluation Modules

Texas Instruments BP-DAC81402EVM and BP-DAC61404EVM Evaluation Modules are an easy-to-use platform designed for the DACx140x. The 16-bit DAC81404 (quad-channel) and 12-bit DAC61402 (dual channel) (DACx140x) are a pin-compatible family of buffered output (up to ±20V) digital-to-analog converters (DACs) with integrated 2.5V internal reference.

The TI BP-DAC81402EVM and BP-DAC61404EVM Evaluation Modules provide the GPIO and SPI programming interface using a PC-based graphical user interface (GUI). The BP-DAC81402EVM and BP-DAC61404EVM require the MSP-EXP432E401Y LaunchPad™ for interfacing with the PC-based GUI.

Features

1-LSB integral nonlinearity/differential nonlinearity (INL/DNL) at 16 bits linearity
Internal reference
Serial peripheral interface (SPI)

±0.05% FSR Total unadjusted error (TUE)
5V, 10V, 20V, 40V, ±5V, ±10V, or ±20V Output ranges

Kit Contents

DAC61402EVM
• BP-DAC61402EVM BoosterPack

Required Components Not Included With Kit
• MSP-EXP432E401Y LaunchPad

Texas Instruments BP-DAC81402EVM & BP-DAC61404EVM Evaluation Modules

Features

Kit Contents

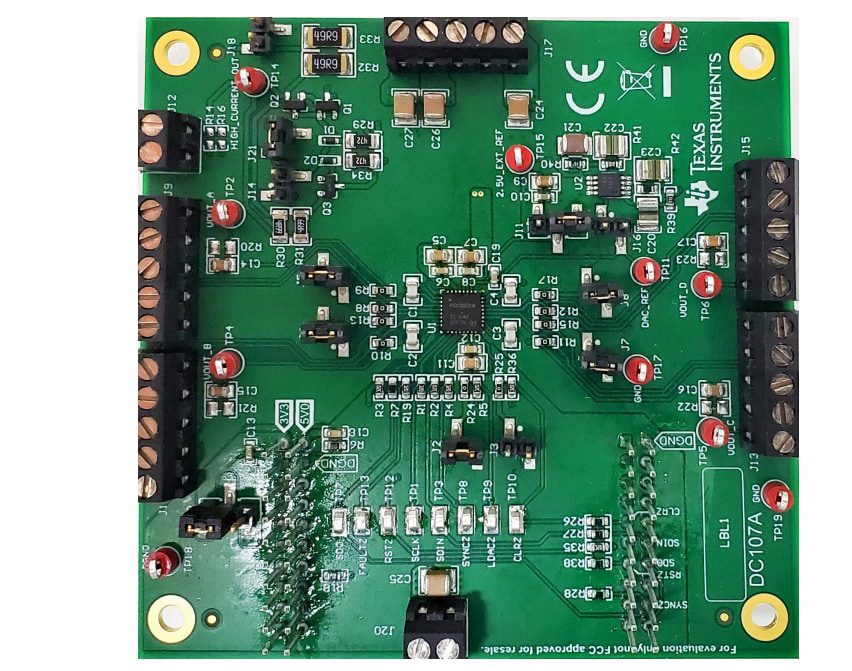

Overview

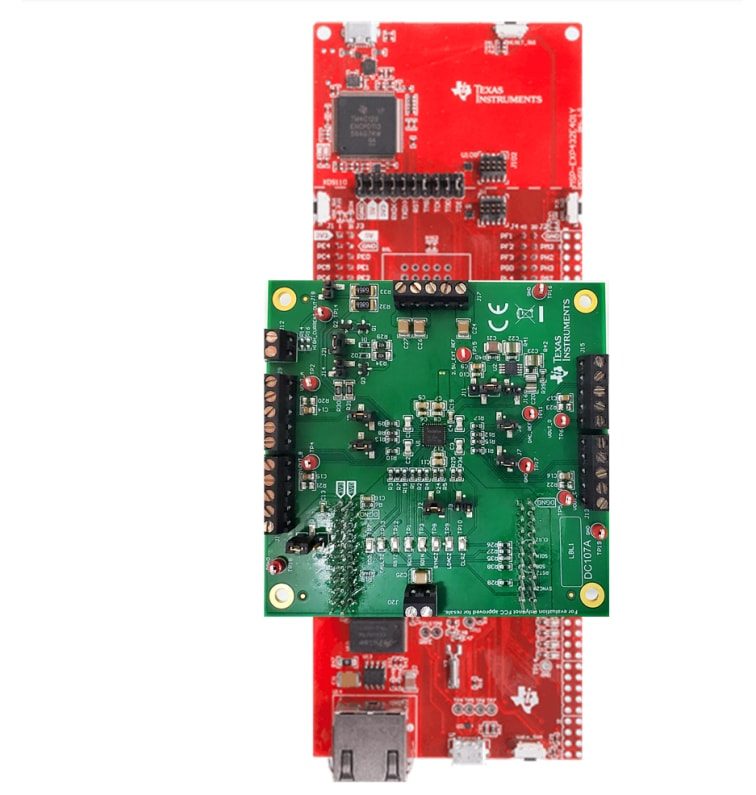

Hardware Setup

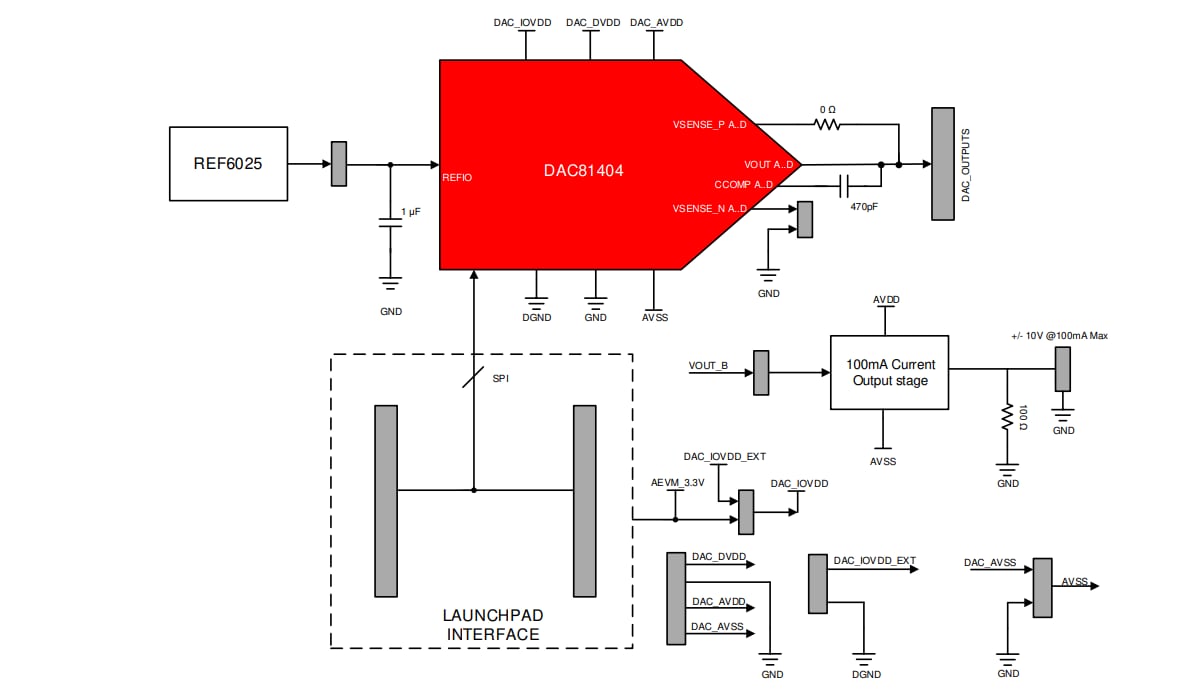

Hardware Block Diagram
