Texas Instruments BOOSTXL-TECDRV BoosterPack™ Board

Texas Instruments BOOSTXL-TECDRV BoosterPack™ Board helps designers evaluate the operation and performance of the TPS63810 buck-boost converter as a driver for a thermoelectric cooling (TEC) module. The TPS63810 is a high efficiency, high output current buck-boost converter programmable through an I²C interface. The BoosterPack™ operates from an input voltage of 3.3V and can drive the TEC with an output current of up to 2.5A.

Features

Plug-in module for TPS63810 operating as a TEC driver
GUI for configuration and software support for different temperature sensors
Real buck, boost, and buck-boost operation with automatic mode transition
I²C interface
High efficiency from 500µA to 2.5A output current

Not included
- MSP432 Launchpad not included (order e.g. MSP-EXP432P401P)
- Temperature sensor not included (order e.g. TMP117AIDRV)
- TEC Module not included

Texas Instruments BOOSTXL-TECDRV BoosterPack™ Board

Features

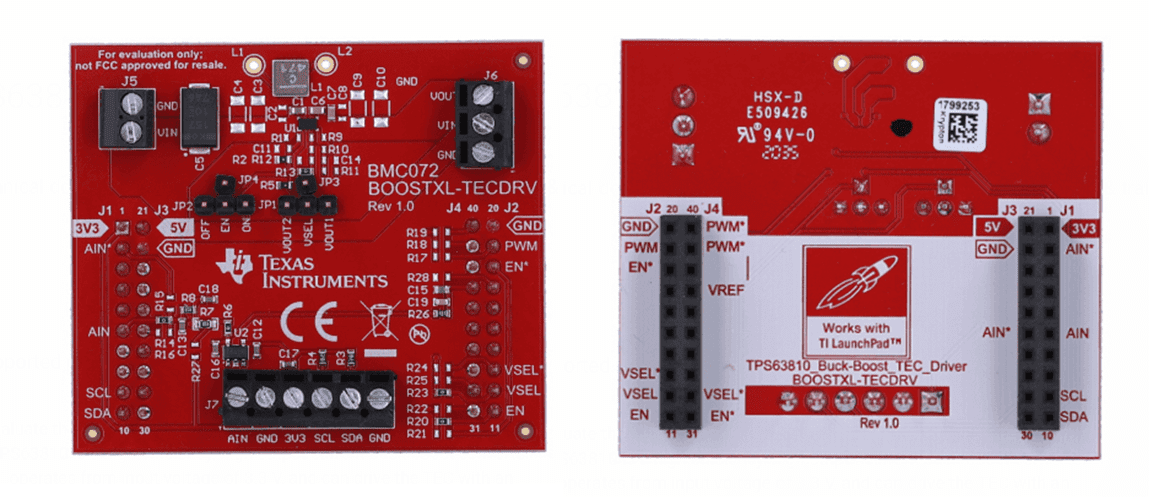

Front & Back Layout

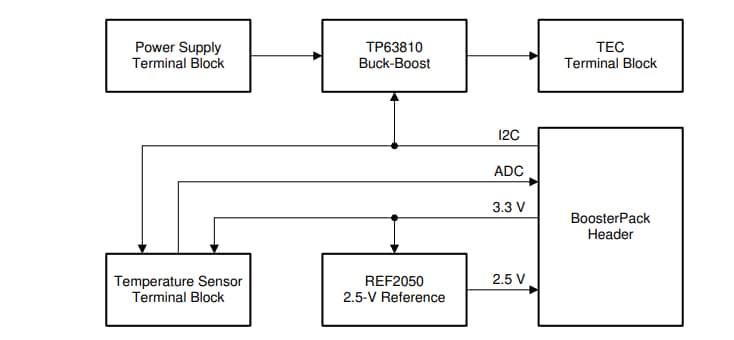

Block Diagram
