Texas Instruments AM68x 64-Bit Jacinto 8 TOPS Vision SoC Processor

Texas Instruments AM68x 64-Bit Jacinto 8 TOPS Vision SoC Processor is a scalable processor based on the evolutionary Jacinto™ 7 architecture. The series is targeted at smart vision camera applications and is built on extensive market knowledge accumulated over a decade of TI’s leadership in the vision processor market. The AM68x family is for a broad set of cost-sensitive, high-performance compute applications in factory automation, building automation, and other markets.

The Texas Instruments AM68x series provides high-performance computing technology for both traditional and deep learning algorithms at industry-leading power/performance ratios with a high level of system integration to enable scalability and lower costs for advanced vision camera applications. Key cores include the Arm® and GPU processors for general computing, next-generation DSP with scalar and vector cores, dedicated deep learning and traditional algorithm accelerators, an integrated next-generation imaging subsystem (ISP), video codec, and isolated MCU island. All are protected by industrial-grade safety and security hardware accelerators.

Features

Processor cores
- Up to dual 64-bit Arm Cortex-A72 microprocessor subsystem at up to 2GHz
  - 1MB shared L2 cache per dual-core Cortex-A72 cluster
  - 32KB L1 D-Cache and 48KB L1 I-Cache per Cortex-A72 core
- Deep Learning Accelerator
  - Up to 8 Trillion Operations Per Second (TOPS)
- Vision Processing Accelerators (VPAC) with Image Signal Processor (ISP) and multiple vision assist accelerators
- Dual-core Arm Cortex-R5F MCUs at up to 1.0GHz, in general, compute partition with FFI
  - 16KB L1 D-Cache, 16KB L1 I-Cache, and 64KB L2 TCM
- Dual-core Arm Cortex-R5F MCUs at up to 1.0GHz to support device management
  - 32K L1 D-Cache, 32K I-Cache, and 64K L2 TCM with SECDED ECC on all memories
- Vision Processing Accelerators (VPAC) with Image Signal Processor (ISP) and multiple vision assist accelerators
  - 480MPixel/s ISP
  - Support for up to 16-bit input RAW format
  - Wide Dynamic Range (WDR), Lens Distortion Correction (LDC), Vision Imaging Subsystem (VISS), and Multi-Scalar (MSC) support
  - Output color format : 8-bits, 12-bits, and YUV 4:2:2, YUV 4:2:0, RGB, HSV/HSL
Multimedia
- Display subsystem supports
  - Up to 4 displays
  - Up to two DSI 4L TX (up to 2.5K)
  - One eDP 4L
  - One DPI 24-bit RGB parallel interface
  - OLDI/LVDS (4 lanes – 2x) and 24-bit RGB parallel interface
  - Safety features such as freeze frame detection and MISR data check
- 3D Graphics Processing Unit
  - IMG BSX-64-4, up to 800MHz
  - 50GFLOPS, 4 GTexels/s
  - > 500MTexels/s, > 8GFLOPs
  - Supports at least two composition layers
  - Supports up to 2048×1080 @60fps
  - Supports ARGB32, RGB565 and YUV formats
  - 2D graphics capable
- OpenGL ES 3.1, Vulkan 1.2
Two CSI2.0 4L Camera Serial interface (CSI-Rx) Plus CSI2.- 4L Tx (CSI-Tx) with DPHY
- MIPI CSI 1.3 Compliant + MIPI-DPHY 1.2
- Support for 1, 2, 3, or 4 data lane modes up to 1.5Gbps
- ECC verification/correction with CRC check + ECC on RAM
- Virtual Channel support (up to 16)
- Ability to write stream data directly to DDR via DMA

Video Encoder/Decoder
- Support for HEVC (H.265) Main profiles at Level 5.1 High-tier
- Support for H.264 Baseline/Main/High Profiles at Level 5.2
- Support for up to 4K UHD resolution (3840 × 2160)
- 4K60 H.264/H.265 Encode/Decode (up to 480MP/s)
Memory subsystem
- Up to 4MB of on-chip L3 RAM with ECC and coherency
  - ECC error protection
  - Shared coherent cache
  - Supports internal DMA engine
- Up to two External Memory Interface (EMIF) modules with ECC
  - Supports LPDDR4 memory types
  - Supports speeds up to 4266MT/s
  - Up to two 32-bit data buses with inline ECC up to 17GB/s per EMIF
- General-Purpose Memory Controller (GPMC)
- Up to two 512KB on-chip SRAM in MAIN domain, protected by ECC
Device security
- Secure boot with secure run-time support
- Customer programmable root key, up to RSA-4K or ECC-512
- Embedded hardware security module
- Crypto hardware accelerators – PKA with ECC, AES, SHA, RNG, DES, and 3DES
High-speed serial interfaces
- One PCI-Express (PCIe) Gen3 controllers
  - Up to four lanes per controller
  - Gen1 (2.5GT/s), Gen2 (5.0GT/s), and Gen3 (8.0GT/s) operation with auto-negotiation
- One USB 3.0 dual-role device (DRD) subsystem
  - Enhanced SuperSpeed Gen1 Port
  - Supports Type-C switching
  - Independently configurable as a USB host, USB peripheral, or USB DRD
- Two CSI2.0 4L RX plus Two CSI2.04L TX
- Two Ethernet RMII/RGMII interfaces
Flash memory interfaces
- Embedded MultiMediaCard Interface (eMMC™ 5.1)
- One Secure Digital 3.0/Secure Digital Input Output 3.0 interface (SD3.0/SDIO3.0)
- Two simultaneous flash interfaces configured as
  - One OSPI or HyperBus™ or QSPI, and
  - One QSPI
Technology / Package
- 16nm FinFET technology
- 23mm x 23mm, 0.8mm pitch, 770-pin FCBGA (ALZ)

Applications

Machine vision cameras and computers
Smart shopping carts
Retail automation
Smart agriculture
Video surveillance
Traffic monitoring
Autonomous mobile robots (AMR)

Drones
Industrial transport
Industrial human machine interfaces (HMI)
Industrial PCs
Single board computers
Patient monitoring and medical devices

Texas Instruments AM68x 64-Bit Jacinto 8 TOPS Vision SoC Processor

Features

Applications

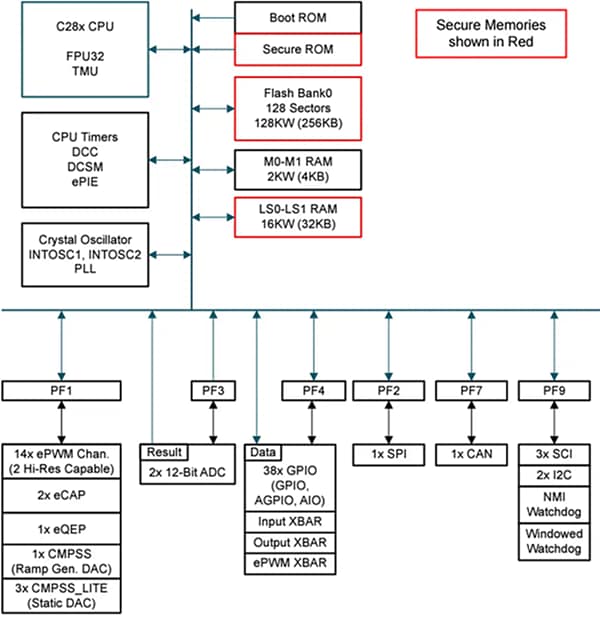

Functional Block Diagram
