Texas Instruments ADC3910D125EVM ADC Evaluation Module (EVM)

Texas Instruments ADC3910D125EVM ADC Evaluation Module (EVM) evaluates the ADC3910D125 family of high-speed analog-to-digital converters (ADCs). The ADC3910D125EVM is populated with the ADC3910D125, a 10-bit dual-channel ADC with an LVCMOS interface that can operate up to 125MSPS. The Texas Instruments ADC3910D125EVM evaluates all device speed grades: 25MSPS, 65MSPS, and 125MSPS.

Features

Dual channel
Ultra-low power
One clock cycle latency

Buffered inputs
32-pin VQFN (4mm x 4mm) small footprint

Kit Contents

FTDI board
Mini-USB cable
Evaluation module barrel power cable

Required Equipment

TSW1418EVM for capturing the data from the ADC3910D125
HSDC Pro
Python (3.10.9)
Vivado Lab Solutions (2023.2)
Visual Studio Code (VS Code) or preferred IDE
Bandpass filters for the sample clock and the analog inputs
- The filters have a narrow passband within 5%-15% of the desired bandwidth and minimal insertion loss

At least two low-noise signal generators to provide the ADC sampling clock and an analog input
- TI recommends either of the following signal generators
  - Rohde and Schwarz SMA100A
  - Rohde and Schwarz SMA100B
SMA cables for signal connections

Applications

Radio receiver
LiDAR
Low latency control loops
Laser scanners

GPS
SMU
Detection equipment

Texas Instruments ADC3910D125EVM ADC Evaluation Module (EVM)

Features

Kit Contents

Required Equipment

Applications

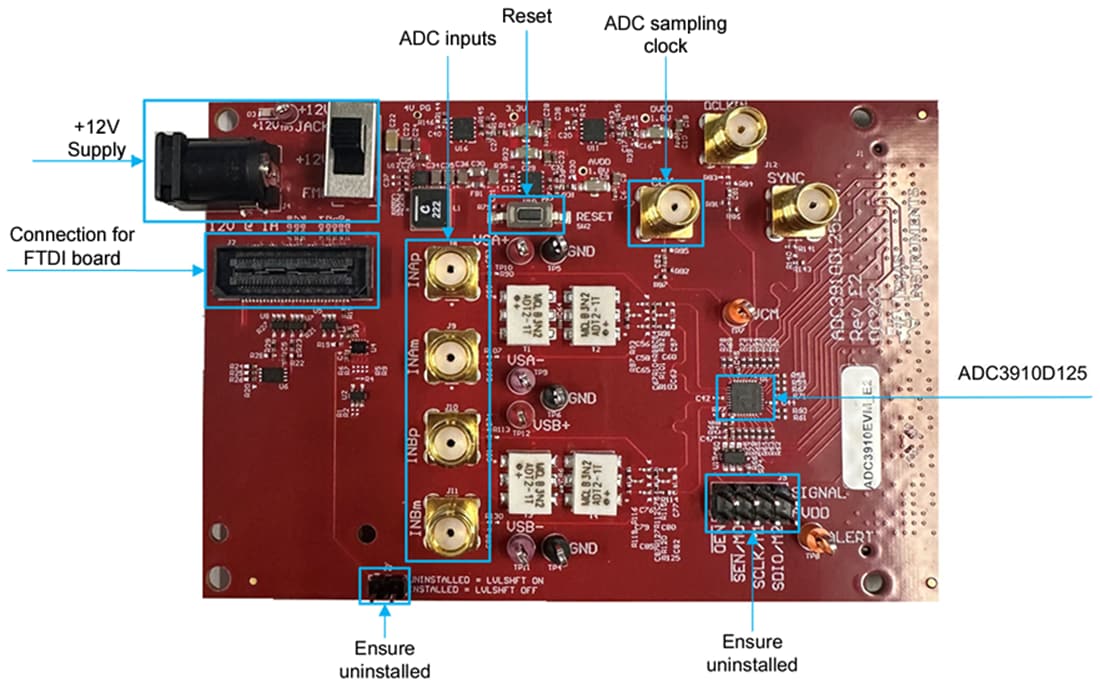

Board Overview
