Texas Instruments ADC3683EVMCVAL ADC Evaluation Module (EVM)

Texas Instruments ADC3683EVMCVAL ADC Evaluation Module (EVM) is used to evaluate the ADC36XXQML-SP analog-to-digital converter (ADC). The ADC36XXQML-SP uses a serial low-voltage differential signaling (LVDS) interface to output the digital data. The serialized LVDS interface supports output rates up to 1Gbps. The Texas Instruments ADC36XXQML-SP can be operated in oversampling + decimating mode using the internal decimation filter to improve the dynamic range and relax the external anti-aliasing filter.

Features

Transformer coupled or single-ended clock inputs
Transformer coupled or single-ended analog inputs
FMC connector
Single 5V power supply jack for easy power-up

REF35160QDBVR Precision Voltage Reference for the ADC 1.6V external reference
REFBUF test point provides a hardware option to change the voltage reference

Kit Contents

ADC36xxEVMCVAL evaluation module
Mini-USB cable

Texas Instruments ADC3683EVMCVAL ADC Evaluation Module (EVM)

Features

Kit Contents

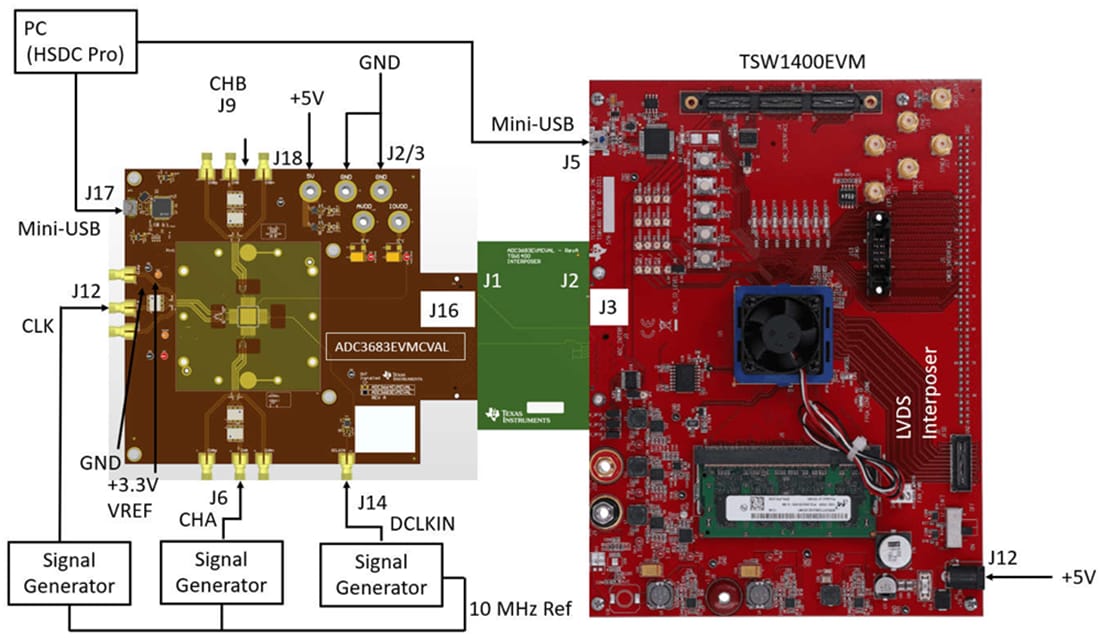

Block Diagram
