Teltonika TSW200 Industrial PoE+ Switch

Teltonika TSW200 Industrial PoE+ Switch is equipped with 2 SFP ports for long-range fiber-optic communication and 8 Gigabit Ethernet ports which support IEEE802.3af and IEE802.3 at Power-over-Ethernet standards. Classified as power source equipment (PSE), the TSW200 enables centralization of the power supply, providing up to 30W per port and reducing the effort of installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for industrial Ethernet networks. Teltonika TSW200 Industrial Unmanaged Switch is ideal for professional, high-bandwidth applications where it is necessary to provide both a reliable data connection and power.

Features

Ethernet
- PoE ports: 8
- PoE standards: 802.3af and 802.3at
- PoE maximum power per port (at PSE): 30W
- Total PoE power budget (at PSE): 240W
Performance specifications
- Bandwidth (non-blocking): 20Gbps
- Packet buﬀer: 128KB
- MAC address table size: 2K entries
Power
- Connector: 2-pin industrial DC power socket
- Ground: 1x grounding screw
- Input voltage range: 7V to 57V DC
- Input voltage range for PoE: 44V to 57V DC
- Power consumption: <2.2W idle, <19W no PoE, 106W maximum

Physical interfaces
- Ethernet: 8x RJ45 ports, 10/100/1000Mbps
- Ethernet fiber: 2x SFP ports
- Status LEDs: 1x Power LED, 16x LAN status LEDs, 2x SFP status LEDs
IP30 ingress protection rating
Full aluminum housing
132mm x 44.2mm x 95.1mm dimensions
DIN-rail or wall mounting (additional kit needed), ﬂat-surface placement
-40°C to +75°C operating temperature range

Accessories

DIN Rail Kit (PR5MEC00)
Compact DIN Rail Kit (PR5MEC11)

Surface Mount Kit (PR5MEC12)
2-Pin Power Supplies (PR3x)

Videos

Resources

Datasheet
Product Brief
Quick Start Guide

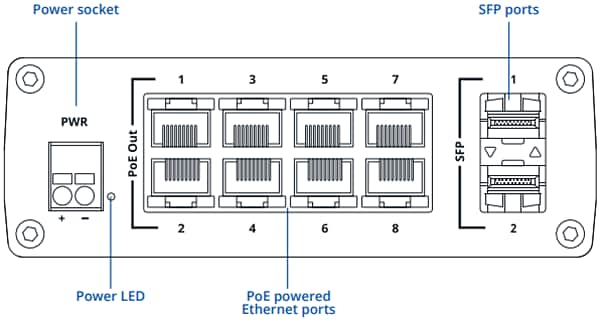

Front Panel

Power Supplies

View Teltonika Power Supplies for TSW200
