Teltonika TSW110 Layer 2 Unmanaged Switch

Teltonika TSW110 Layer 2 Unmanaged Switch provides an economical high-speed bandwidth solution with five Gigabit Ethernet ports and speeds up to 1000Mbps. The TSW110 Switch features an easy-to-use plug-and-play design, enabling quick setup. The TSW110 supports passive PoE (Power over Ethernet) with the ability to power up through the first LAN port to reduce deployment complexity.  Teltonika TSW110 L2 Unmanaged Switch is ideal for professional high bandwidth applications to provide a reliable data connection.

Features

  • Ethernet: 5x LAN ports 10/100/1000Mbps
  • 10Gbps bandwidth
  • 128KB packet buffer
  • MAC address table size: 2K entries
  • Auto MDI/MDI-X cable detection
  • PoE (passive)
    • Passive PoE over 4,5 (power) and 7,8 (ground) pins
    • Supports power up through first LAN port
    • Not compatible with IEEE802.3af and 802.3at standards
  • Connectors
    • 1x 4-pin DC
    • 5x Ethernet
  • Status LEDs
    • 10x Ethernet
    • 1x power
  • 9V to 30V power supply, 4-pin power socket
  • <0.4W idle power consumption, <1.8W maximum
  • IP30 ingress protection rating
  • -40°C to +75°C operating temperature range
  • Aluminum housing with wall or DIN-rail mounting option and grounding capability
  • Desktop, wall, or DIN-rail mountable
  • 100mm x 30mm x 85mm dimensions

Kit Contents

  • TSW110
  • 9W power supply
  • Quick Start Guide

Videos

Resources

  • TSW110 Flyer
  • Datasheet
  • Quick Start Guide

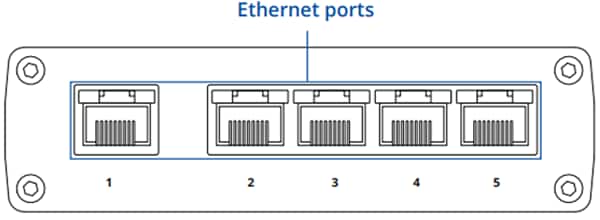

Front Panel
