Teltonika RUTX08 Ethernet-to-Ethernet Industrial VPN Router

Teltonika RUTX08 Ethernet-to-Ethernet Industrial VPN Router provides four Gigabit Ethernet ports with speeds up to 1000 Mbps. The RUTX08 Router runs on RutOS, which is an advanced OpenWRT-based operating system. The device supports multiple VPN services, advanced Firewall, and industrial networking protocol support. These features, plus Teltonika’s Remote Management System (RMS), make RUTX08 an ideal choice for professional applications where no cellular or Wi-Fi connectivity is required.

The Teltonika RUTX08 Router features a rugged aluminum housing with support for DIN rail mounting and grounding capability.

Features

Software
- Operating system: RutOS (OpenWrt based Linux OS)
- Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet
- Routing: Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules
- Firewall: Port forward, Traﬃc rules, Custom rules, Pre-conﬁgured ﬁrewall rules, DMZ, NAT, NAT-T, NAT helpers, Unlimited ﬁrewall conﬁguration via CLI
- Security: DDOS prevention (SYN ﬂood protection, SSH attack prevention, HTTP/HTTPS attack prevention), Port scan prevention (SYN-FIN,
- SYN-RST, X-mas, NULL ﬂags, FIN scan attacks)
- VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier Monitoring, and management WEB UI,
- CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
- Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
- Services: DDNS, VRRP, Wake On Lan (WOL), WEB ﬁlter, UPNP, Network shares (Samba), Traﬃc Logging
- Administration: Multi-user, Conﬁguration proﬁles, Diagnostics, Logs, Conﬁguration backup

Hardware
- CPU: Qualcomm, 4x Arm® Cortex®-A7, 717MHz
- Memory: 256MBytes Flash, 256MBytes RAM
- Power: 4-pin power socket, 9V to 50V DC
- Ethernet:
  - 4x 10/100/1000 Ethernet ports
    - 1x WAN (conﬁgurable as LAN)
    - 3x LAN
- Inputs/Outputs on 4-pin socket: 1x digital input, 1 x digital open collector output
- Other: 1x USB Host
- Status LEDs: 8x Ethernet, 1x Power
- Operating temperature: -40°C to +75°C
- Housing: DIN rail mountable aluminum housing with grounding capability
- Dimensions: 115mm x 32mm x 95mm
- Weight: 345g

Kit Contents

Router RUTX08
18W Power Supply
1.5m Ethernet cable

Quick Start Guide
RMS Flyer

Resources

Datasheet
Product Brief

Quick Start Guide
RMS Flyer

Teltonika RUTX08 Ethernet-to-Ethernet Industrial VPN Router

Features

Kit Contents

Resources

Videos

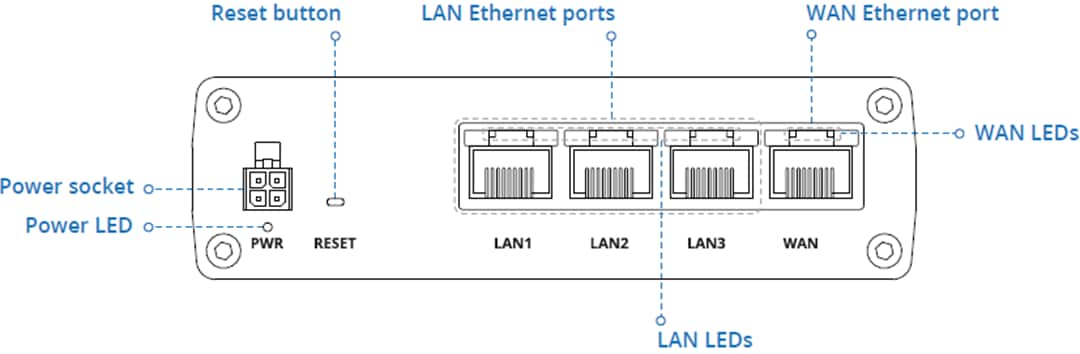

Front Panel

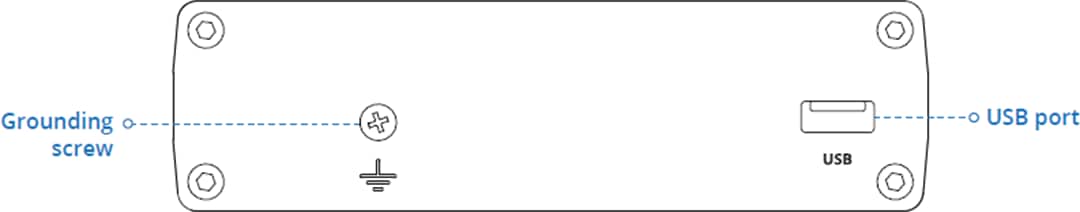

Back Panel
