Teledyne LeCroy T3VNA3200 3.2GHz Vector Network Analyzer

Teledyne LeCroy T3VNA3200 3.2GHz Vector Network Analyzer features a vector network analyzer frequency range from 10MHz to 3.2GHz and a spectrum analyzer frequency range from 9kHz to 3.2GHz. The analyzer offers a small footprint and easy user interface that is augmented by a high-performance specification with many advanced measurement functions and capabilities. The unit offers comprehensive measurement capabilities, even in the base unit. Teledyne LeCroy T3VNA3200 3.2GHz Vector Network Analyzer enhancement options support the user when conducting more complex measurements and make daily measurement tasks easier and faster.

Features

100kHz to 3.2GHz vector network analyzer frequency range
9kHz to 3.2GHz spectrum analyzer frequency range
-161dBm/Hz typical displayed average noise level
-98dBc/Hz at 10kHz offset phase noise (1GHz, typical)
<0.7dB total amplitude accuracy
1Hz minimum resolution bandwidth (RBW)
All-digital IF technology

Standard preamplifier
Distance to fault capability using VNA time domain analysis
3.2GHz tracking generator kit
Built-in advanced measurement capability
EMI pre-compliance test kit (optional)
10.1″ WVGA (1024 x 600) display

Applications

Research laboratories
Development laboratories
Repair and maintenance

Calibration laboratories
Automatic production tests
General bench-tops

Teledyne LeCroy T3VNA3200 3.2GHz Vector Network Analyzer

Features

Applications

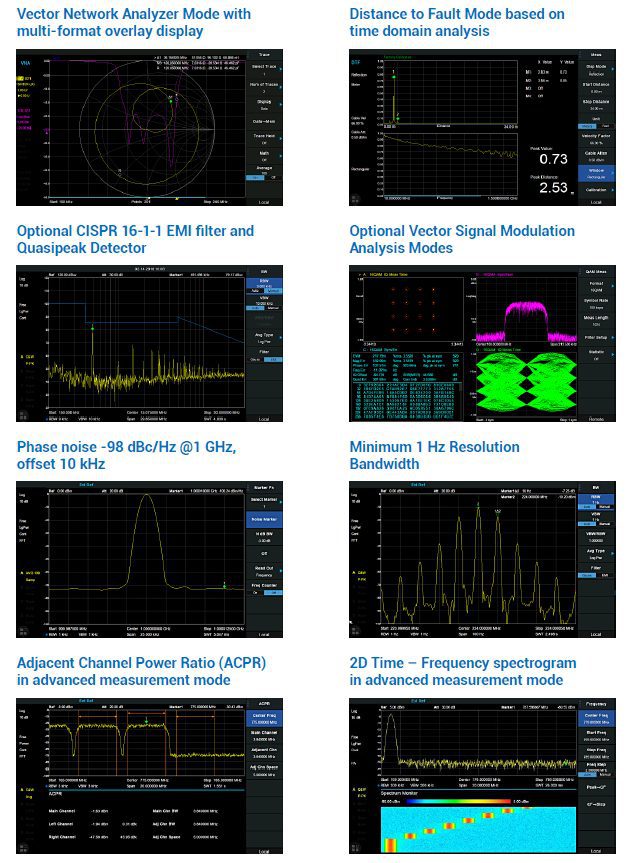

Design Features
