Teledyne LeCroy T3MIL50 & T3MIL50X DC Milliohm Meters

Teledyne LeCroy T3MIL50 and T3MIL50X DC Milliohm Meters feature a 3.5″ TFT display with a measurement of 0.05%. These milliohm meters feature a maximum 50,000-count measurement display and a sampling rate of 60 readings per second. Teledyne LeCroy T3MIL50 and T3MIL50X DC Miliohm Meters provide four-wire measurement, along with temperature measurement and temperature compensation functions. This enables them to meet the requirements of low-resistance measurement applications.

Features

3.5″ Large TFT
Fast measurement time of 60 readings per second
0.05% accuracy

Built-in temperature compensation
USB, RS-232C, Handler/scan/ext I/O interfaces
3-year warranty

Applications

Production testing of contact resistance
- Switches
- Relays
- Connectors
- Cables
Production testing of inductive components
- Coils
- Chokes
- Transformer windings
Testing low-value components
- Resistors
- Fuses
- Heating elements

Winding resistance
- Motors
- Transformers
- Solenoids
- Ballasts
Conductivity evaluation in product design
Incoming inspection and quality assurance testing

Teledyne LeCroy T3MIL50 & T3MIL50X DC Milliohm Meters

Features

Applications

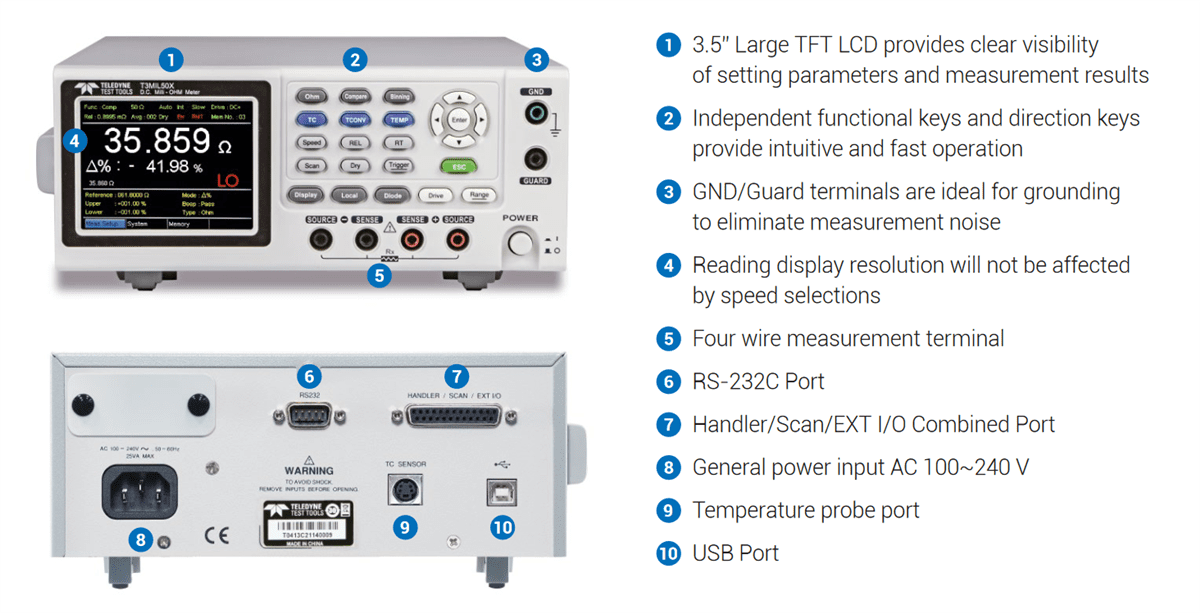

Panel Introduction
