Teledyne LeCroy T3AWG2152 and T3AWG2152-D Multifunctional Generators combine a function generator (AFG), arbitrary waveform generator (AWG), and digital pattern generator (DPG) into one instrument. These components feature 16-bit vertical resolution, selectable 50Ω and 5Ω output impedance, and selectable variable load impedance. The AWG operational mode provides variable clock true-arbitrary technology, a variable sampling clock, and mixed-signal generation: two analog channels and eight digital channels. Users can generate complex and long signals with multiple waveforms in the sequencer. The platform’s deep memory can store numerous long waveforms. The AFG mode offers improved direct digital synthesis (DDS) technology and a fixed sampling clock. This mode also generates a large variety of traditional functions and more. Users can change parameters and apply modulations on the fly for the output signal.

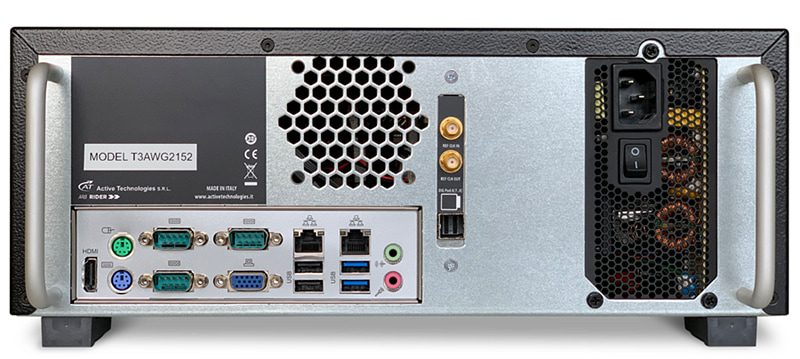

Teledyne LeCroy T3AWG2152 and T3AWG2152-D Multifunctional Generators are ideal for demanding technical applications. The units offer dimensions of 445mm x 135mm x 320mm (17.5″ x 5.3″ x 12.6″) and a 7″ capacitive touch LCD display (1024px x 600px).
