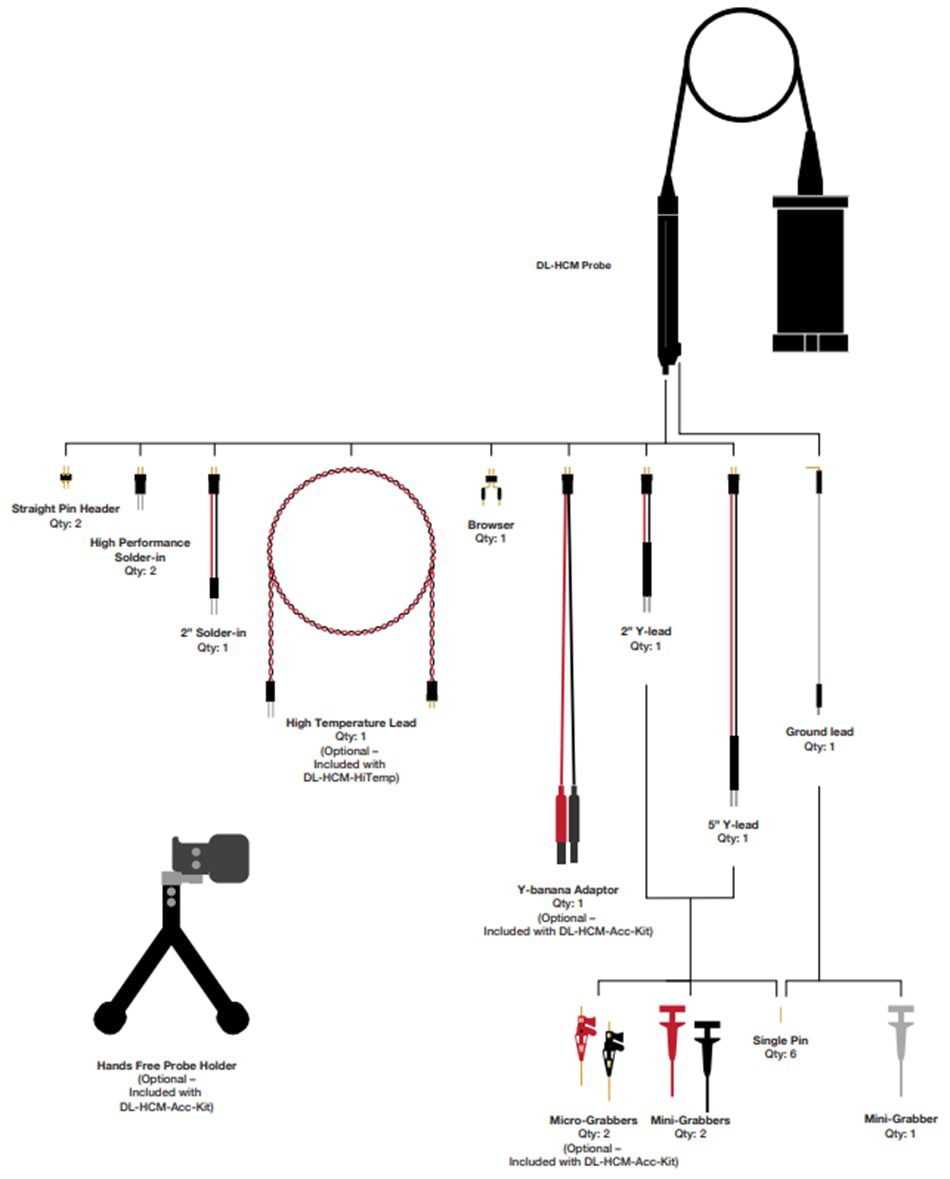

Teledyne LeCroy DL02-HCM 250MHz Test Probe is a 60V common mode differential probe. This probe features the highest 0.5% gain accuracy, precision gain calibration, and best LF flatness (0.1dB). The DL02-HCM probe provides the perfect combination of high performance and flexibility for connecting to any device under test. This probe is ideal for low voltage GaN power conversion measurement with the highest accuracy, best CMRR, and low noise. Applications include 48V motors and drives, high-power DC-DC converters, GaN-based PDNs, AC-DC switch-mode power supplies, wireless charging systems, and gate-drive measurements.
The 60V of common mode is ideal for handling any float of the battery and bulk/absorption voltage during charging. At the same time, the 80V differential input range provides a margin for any overshoot. The precision gain calibration capability permits further measurement precision by improving the gain accuracy and removing small offset drifts from the measurement configuration.
