Teledyne FLIR Lepton Camera Breakout Board v2.0

Teledyne FLIR Lepton Camera Breakout Board v2.0 quickly connects all versions of the Teledyne FLIR Lepton camera module to common platforms like Raspberry Pi or custom hardware. This easy-to-interface evaluation board provides onboard power supplies, generated from 3V to 5.5V, and a master clock. By using a jumper, the master clock, local power supplies, and power-up sequence components can be bypassed. Teledyne FLIR Lepton Camera Breakout Board is designed for applications where SWaP, cost, and quality are critical.

Features

Space-saving
Works with all Teledyne FLIR Lepton modules
Access to SPI and I²C camera module interfaces

Dual low-noise LDO
Designed for quick prototyping and development, not for production use

Applications

Rugged and mobile devices
Smart buildings and smart cities

Motion sensors
Gesture recognition

Specifications

3V to 5.5V input voltage
29.5mm x 29mm dimensions

25MHz reference clock
Up to +55°C maximum operating temperature

Teledyne FLIR Lepton Camera Breakout Board v2.0

Features

Applications

Specifications

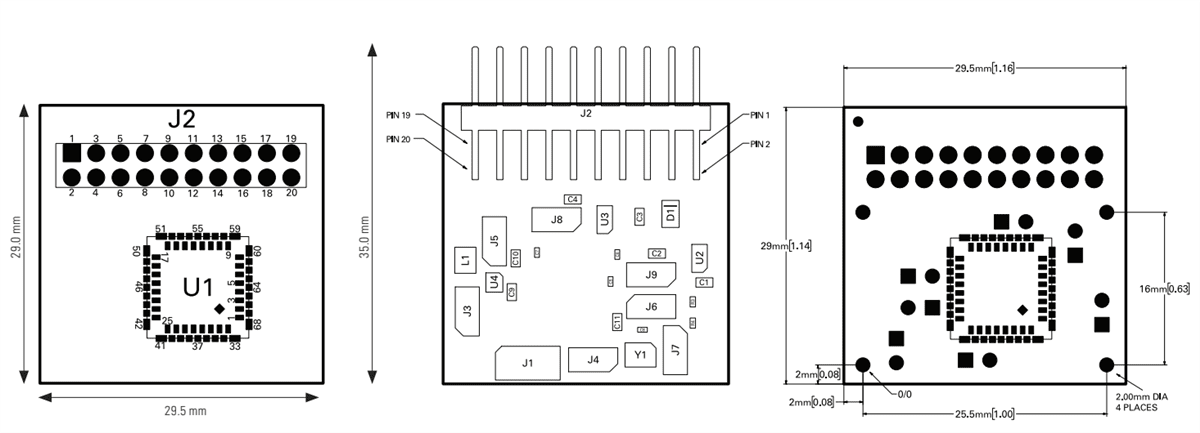

Mounting Hole Locations
