Tektronix TBS1000C Digital Storage Oscilloscopes

Tektronix TBS1000C Digital Storage Oscilloscopes are designed for educational institutions, embedded design engineers, and maker communities. The oscilloscopes feature a 7″ WVGA color display, a 1GS/s sample rate, and bandwidths from 50MHz to 200MHz. The instrument is available with an innovative courseware system that integrates lab exercises with step-by-step instructions. A Help Anywhere® system provides useful tips and hints throughout the user interface for new users. Tektronix TBS1000C Digital Storage Oscilloscopes come with a five-year warranty.

Features

  • 7″ WVGA color display
  • 15 horizontal divisions that show 50% more signal
  • 32 automated measurements
  • Dual window FFT with simultaneous time and frequency domain views
  • Trigger frequency counter
  • Pan and Zoom capability
  • Multi-language user interface with support for 10 languages
  • Small footprint and lightweight
  • Fanless design for low noise operation
  • USB 2.0 host port on front panel for data storage
  • USB 2.0 host device on rear panel to connect to a PC

Specifications

  • 200MHz, 100MHz, 70MHz, and 50MHz bandwidth models
  • 2-channel models
  • 1GS/s sample rate on all channels
  • 20k point record length on all channels
  • Advanced triggers include pulse, runt, and line triggers
  • Five-year warranty

Videos

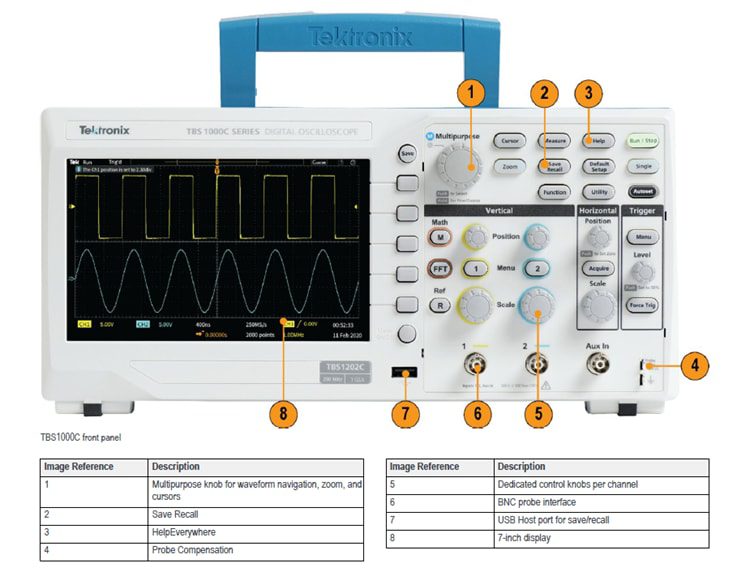

Front

Tektronix TBS1000C Digital Storage Oscilloscopes

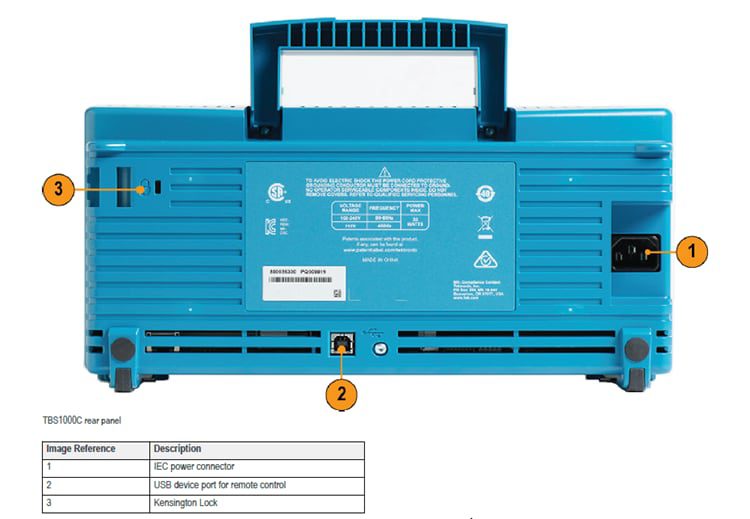

Back

Tektronix TBS1000C Digital Storage Oscilloscopes

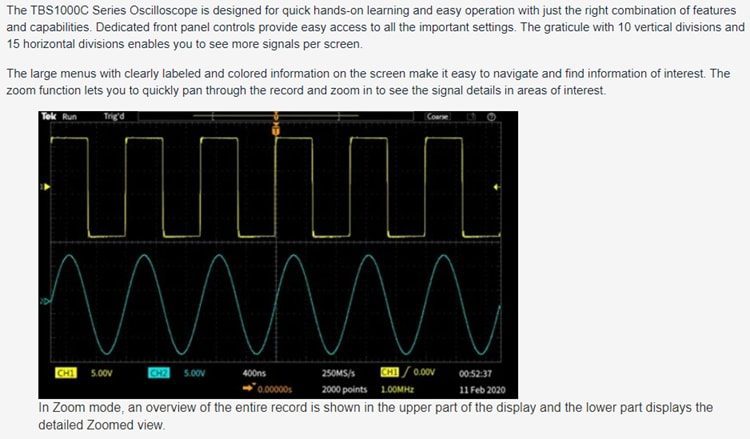

Learn & work faster

Tektronix TBS1000C Digital Storage Oscilloscopes

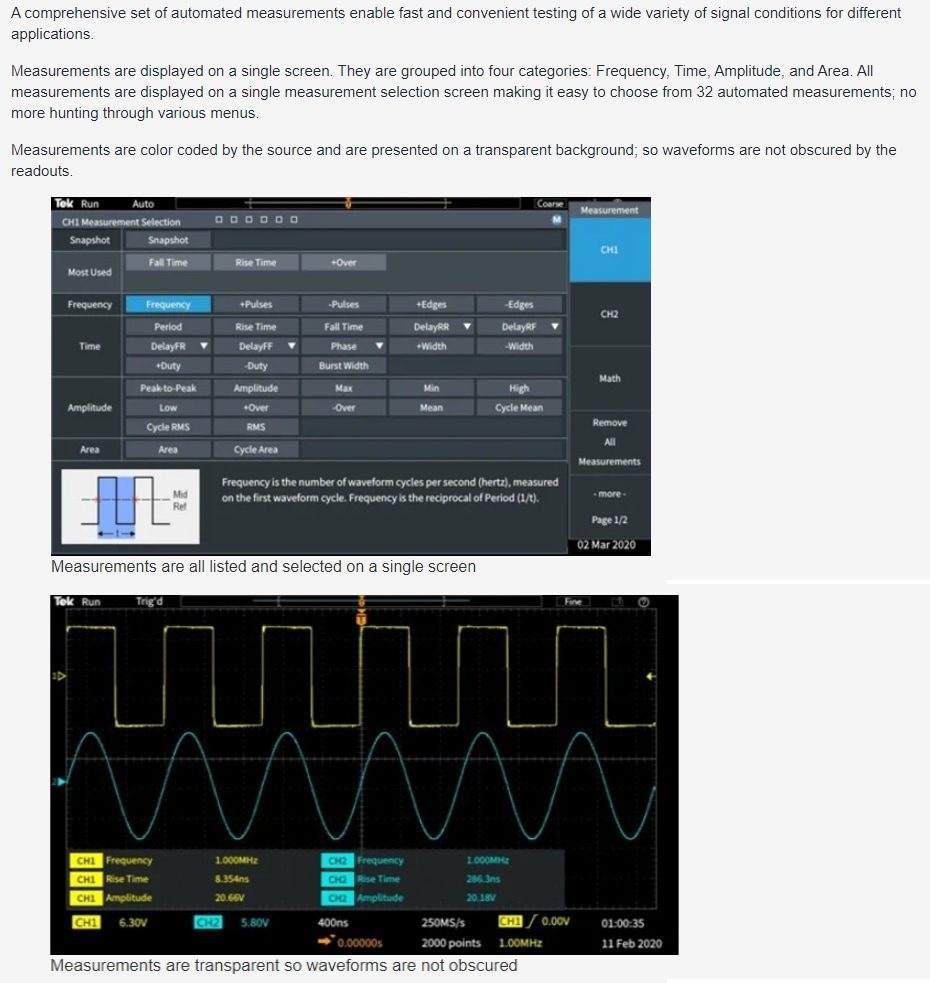

Measurement Automation

Tektronix TBS1000C Digital Storage Oscilloscopes

FFT function

Tektronix TBS1000C Digital Storage Oscilloscopes

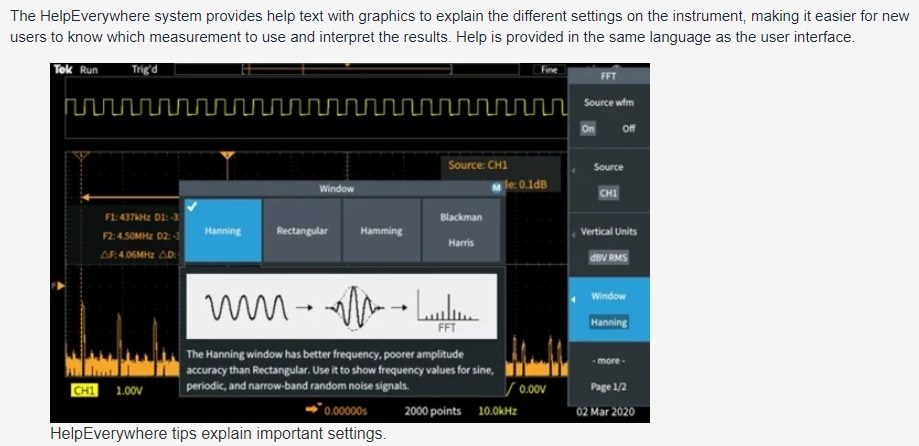

HelpEverywhere

Tektronix TBS1000C Digital Storage Oscilloscopes

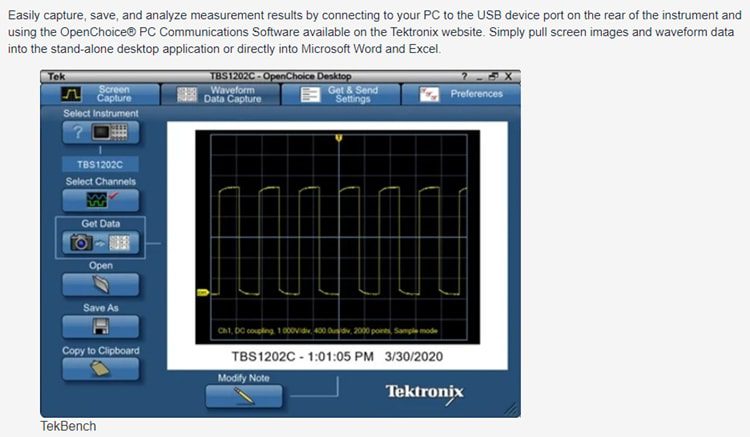

PC connectivity

Tektronix TBS1000C Digital Storage Oscilloscopes

Flexible Data Transfer

The USB host port on the front of the instrument makes it easy to save the instrument settings, screenshots, and waveform data into a USB flash drive.
