TE Hirschmann Mobility Linear Polarization S Cellular (2G/3G/4G) Antenna

TE Connectivity’s Hirschmann Linear Polarization S Cellular (2G/3G/4G) Antenna is a passive transmitting and reception antenna. The low-profile antenna has a body height of 31mm and can be mounted on plastic and metal surfaces. TE Connectivity’s Hirschmann Linear Polarization S Cellular (2G/3G/4G) Antenna provides coverage for all European and North American mobile cellular communications networks. Applications include automotive and commercial vehicles, public transport, and industry and terminal devices.

Features

Passive transmitting and reception antenna
31mm low-profile body height
Coverage of all European and North American mobile cellular communication network
Mounting on plastic and metal surfaces

Applications

Automotive and commercial vehicles
Public transport
Industry and terminal devices

Specifications

Frequency range
- LTE-LB: 698 to 862MHz
- GSM 850: 824 to 894MHz
- GSM 900: 880 to 960MHz
- GSM 1800: 1710 to 1880MHz
- GSM 1900: 1850 to 1990MHz
- UMTS: 1920 to 2170MHz
- LTE-HB: 2305 to 2690MHz
50Ω impedance
Typ. ≤2.0 VSWR
Linear and vertical polarization
RG 174 low loss cable type
SMA male straight connector

TE Hirschmann Mobility Linear Polarization S Cellular (2G/3G/4G) Antenna

Features

Applications

Specifications

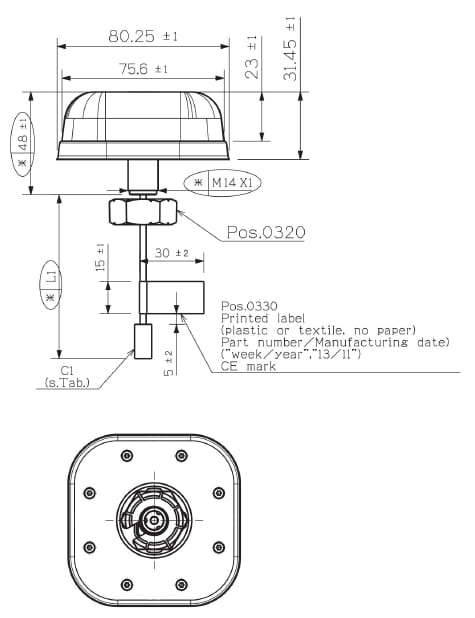

Technical Drawing
