TE Hirschmann Mobility GNSS (GPS/GLONASS) Magnetic Antennas

TE Connectivity’s Hirschmann Mobility GNSS 9 M GNSS (GPS/GLONASS) Magnetic Antennas are low-current consumption (≤13mA @ 5V ±0.5V) antennas. The antennas feature magnetic mounting and can be used in interior or exterior applications. The units are available with an SMA male or FAKRA female, Code C (AIMET) connector, and RG 174 cable. TE Connectivity / Hirschmann Mobility GNSS 9 M GNSS (GPS/GLONASS) Magnetic Antennas applications include car navigation, fleet management, traffic guidance, and vehicle location.

Features

For interior and exterior mounting at vehicles
Frequency range
- GLONASS: 1602.0MHz to 1614,94MHz
- GPS: 1.57542GHz ±1.023MHz (L1-band)
50Ω impedance
<1.5 VSWR

RHCP polarization
≤13mA @ 5V ± 0.5V current consumption
SMA male or FAKRA female, Code C (AIMET) connector
RG 174 cable type
IP6k7 protection

TE Hirschmann Mobility GNSS (GPS/GLONASS) Magnetic Antennas

Features

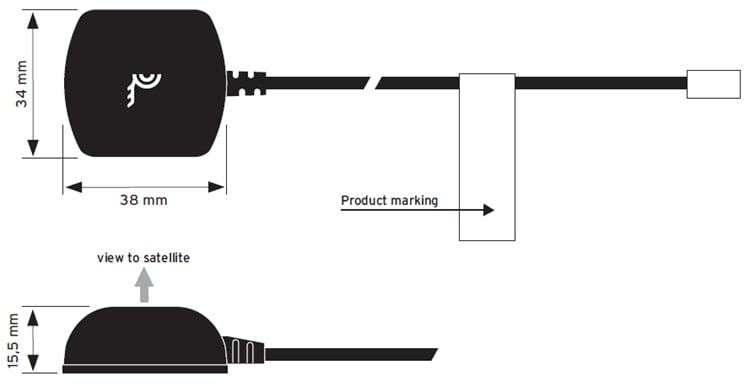

Technical Drawing
