TE Hirschmann Mobility Cellular / GNSS / WLAN Vehicle Antennas

TE Connectivity’s Hirschmann Mobility CGNW 702659 SF S Cellular (2G/3G/4G) / GNSS (GPS/GLONASS) / WLAN (2.4GHz/5.8GHz) Antennas are designed for positioning, data-services, and short-range radio services. The antenna offers terrestrial-based transmission and satellite-based positioning. TE Connectivity / Hirschmann Mobility CGNW 702659 SF S Cellular (2G/3G/4G) / GNSS (GPS/GLONASS) / WLAN (2.4GHz/5.8GHz) Antennas feature an embedded high-performance, low-noise amplifier (LNA) with a dual-feed ceramic patch antenna.

Features

Combination antenna
- Positioning
- Data-services
- Short-range radio services
Terrestrial-based transmission

Satellite-based positioning
Low-noise amplifier (LNA) with ceramic patch antenna
Screw mounting on metallic ground
Street vehicle roof mount installation

Specifications

Cellular frequency range
- LTE-LB: 698MHz to 862MHz
- GSM 850: 824MHz to 894MHz
- GSM 900: 880MHz to 960MHz
- GSM 1800: 1710MHz to 1880MHz
- GSM 1900: 1850MHz to 1990MHz
- UMTS: 1920MHz to 2170MHz
- LTE-HB: 2305MHz to 2690MHz

GNSS (GPS/GLONASS) frequency range
- 1.575MHz to 1610MHz
WLAN (2.4GHz/5.8GHz)
- IEEE 802.11 b, g: 2400MHz to 2484MHz
- IEEE 802.11 p: 5755MHz to 5925MHz

TE Hirschmann Mobility Cellular / GNSS / WLAN Vehicle Antennas

Features

Specifications

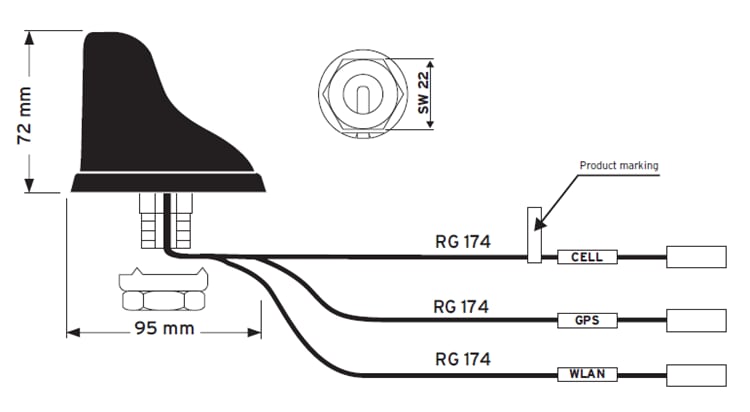

Technical Drawing
