TE Hirschmann Mobility Cellular / GNSS / WLAN Harsh Environment Antenna

TE Connectivity’s Hirschmann Mobility CGNW 702659 LP S Cellular (2G/3G/4G) / GNSS (GPS/GLONASS) / WLAN (2.4GHz/5.8GHz) Antenna is designed for positioning, data-services, and short-range radio services. The antenna offers terrestrial-based transmission and satellite-based positioning. The unit features an embedded high-performance, low-noise amplifier (LNA) with a dual-feed ceramic patch antenna and a phase shift network for optimized cross-polarization discrimination (XPD). The antenna can be screw mounted on metallic and non-metallic surfaces. TE Connectivity / Hirschmann Mobility CGNW 702659 LP S Cellular (2G/3G/4G) / GNSS (GPS/GLONASS) / WLAN (2.4GHz/5.8GHz) Antenna is designed for harsh environment applications.

Features

Combination antenna for positioning, data-services, and short-range radio services
Terrestrial-based transmission and satellite-based positioning
Embedded high-performance, low-noise amplifier (LNA) with dual-feed ceramic patch antenna

Phase shift network for optimized cross-polarization discrimination (XPD)
Screw mounting on metallic and non-metallic ground
Designed for harsh environments

Specifications

Cellular (2G/3G/4G) frequency range
- LTE-LB: 698MHz to 862MHz
- GSM 850: 824MHz to 894MHz
- GSM 900: 880MHz to 960MHz
- GSM 1800: 1710MHz to 1880MHz
- GSM 1900: 1850MHz to 1990MHz
- UMTS: 1920MHz to 2170MHz
- LTE-HB: 2305MHz to 2690MHz

GNSS (GPS/GLONASS) frequency range
- GPS: 1.57542GHz ±1.023MHz, (L1-band)
- GLONASS: 1602.0MHz to 1614.94M

WLAN(2.4GHz/5.8GHz)
- IEEE 802.11 b, g: 2400MHz to 2484MHz
- IEEE 802.11 a, h: 5150MHz to 5725MHz
- IEEE 802.11 n: 2400MHz to 2484MHZ and 5150 to 5725MHz
- IEEE 802.11 p: 5755MHz to 5925MHz

TE Hirschmann Mobility Cellular / GNSS / WLAN Harsh Environment Antenna

Features

Specifications

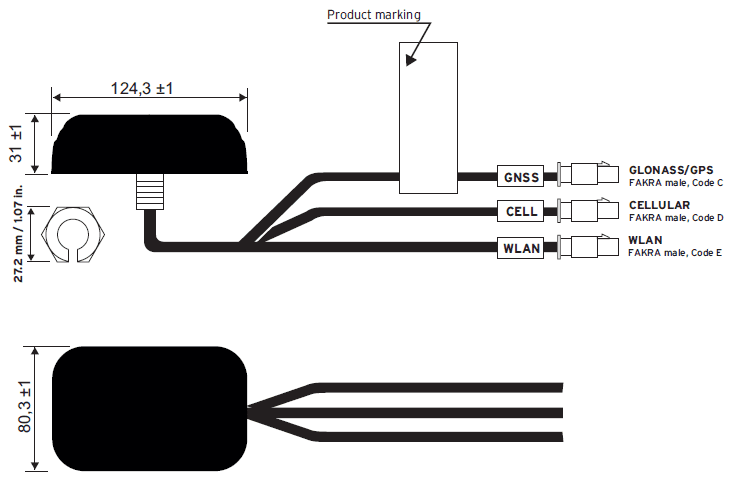

Technical Drawing
