TE Hirschmann Mobility Cellular / GNSS Antenna 95 x 57 x 69mm

TE Connectivity’s Hirschmann CGN 7026 SF S Cellular (2G/3G/4G) / GNSS (GPS/GLONASS) Antenna is a combination antenna for positioning and data services. The antenna offers terrestrial-based transmission and satellite-based positioning. TE Connectivity / Hirschmann CGN 7026 SF S Cellular (2G/3G/4G) / GNSS (GPS/GLONASS) Antenna is designed for harsh environment applications.

Features

Combination antenna for positioning and data services
Terrestrial-based transmission and satellite-based positioning
Designed for harsh environments

Specifications

Cellular frequency range
- LTE-700: 698 to 862MHz
- GSM 900: 880 to 960MHz
- GSM 1800: 1710 to 1880MHz
- UMTS: 1920 to 2170MHz
- LTE: 2500 to 2690MHz
GNSS frequency range
- GPS: 1575.42 MHz ±1.023MHz (L1-band)
- GLONASS: 1598.1 to 1605.4MHz

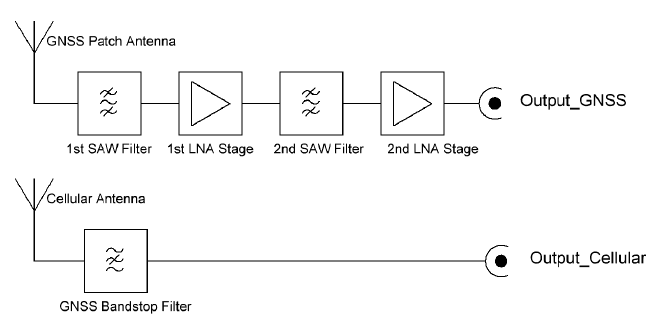

Block Diagram

TE Hirschmann Mobility Cellular / GNSS Antenna 95 x 57 x 69mm
