TE Hirschmann Mobility CELLULAR (2G/3G) / AM/FM Screw Mount Antenna

TE Connectivity’s Hirschmann Mobility CR 8521 RD S CELLULAR (2G/3G) / AM/FM (LW/MW/SW/Bandll) Antenna is a screw mount, road vehicle roof antenna. The antenna has an amplifier and duplexer integrated into the base and features a detachable anti-noise rod. TE Connectivity / Hirschmann Mobility CR 8521 RD S CELLULAR (2G/3G) / AM/FM (LW/MW/SW/Bandll) Antenna has a FME male connector and RG 174 cable type.

Features

Amplifier and duplexer are integrated into the base
Detachable anti-noise rod

Road vehicle roof mount
Screw mount

Specifications

AM / FM frequency range
- AM: 0.15MHz to 16.2MHz
- FM: 87MHz to 108MHZ
Celluar frequency range
- GSM 850: 824MHz to 894MHz
- GSM 900: 880MHz to 960MHz
- GSM 1800: 1710MHz to 1880MHz
- GSM 1900: 1850MHz to 1990MHz
- UMTS: 1920MHz to 2170MHz

Gain
- AM: 10dB
- FM: 6dB
- Cellular: 0dB
FME male connector
RG 174 cable type

TE Hirschmann Mobility CELLULAR (2G/3G) / AM/FM Screw Mount Antenna

Features

Specifications

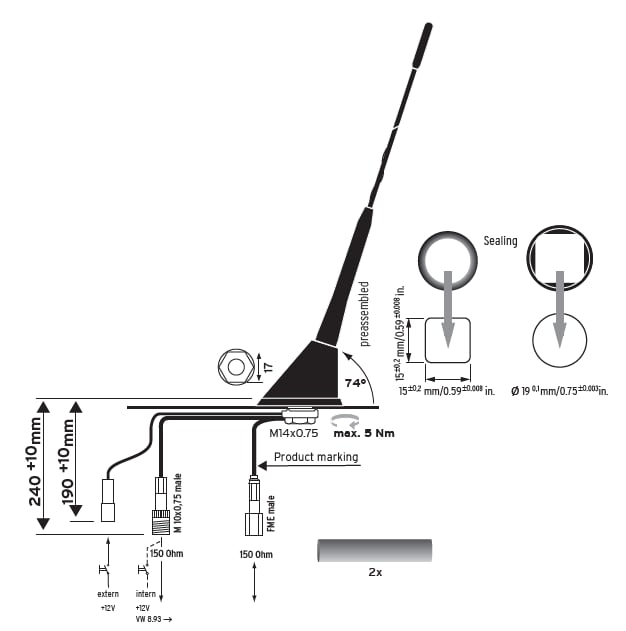

Technical Drawing
