TE Hirschmann Mobility Cellular (2G/3G/4G) Vehicle Glazing Antennas

TE Connectivity’s HirschmannCEL 7026 A Cellular (2G/3G/4G) Vehicle Glazing Antennas feature easy interior and exterior windshield mounting. The antennas are available with a FAKRA female, Code D (Bordeaux) or SMA male connector. TE Connectivity / Hirschmann CEL 7026 A Cellular (2G/3G/4G) Vehicle Glazing Antennas are designed for cellular networks.

Features

Interior and exterior installation on non-conductible materials
For cellular networks
Adhesive pad mount

Applications

Automotive and commercial vehicles
Public transports
Industry
Terminal devices

Specifications

Frequency range
- LTE (low): 698 to 862MHz
- CELL (low): 824 to 960MHz
- CELL (high): 1710 to 2170MHz
- LTE (high): 2305 to 2690MHz
Linear polarization (low band)
2.15dBi gain (linear gain, vertical polarization)
RG 174 low loss cable type
Connectors
- FAKRA female, Code D (Bordeaux)
- SMA male

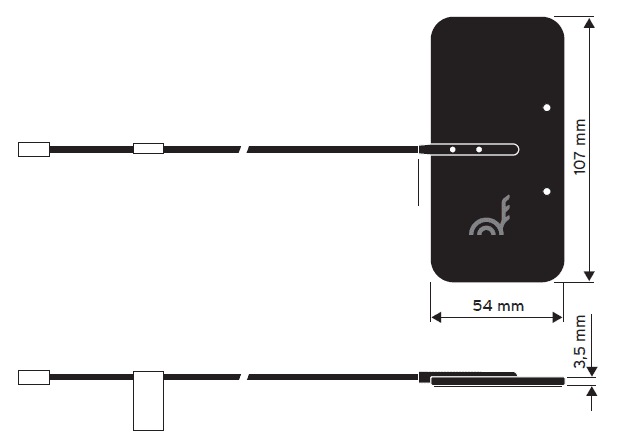

Technical Drawing
