TE Hirschmann Mobility Cellular (2G/3G/4G/LTE) Magnetic Mount Antennas

TE Connectivity’s Hirschmann Cellular (2G/3G/4G/LTE) Magnetic Mount Antennas offer 2G through 4G/LTE service. The antennas are available with FME female or SMA male connectors and feature a magnetic mount. TE Connectivity / Hirschmann Cellular (2G/3G/4G/LTE) Magnetic Mount Antennas has a typical gain of 3dBi.

Features

  • Frequency range
    • LTE (low): 698 to 862MHz
    • LTE (high): 2305 to 2690MHz
    • GSM 850: 824 to 894MHz
    • GSM 900: 880 to 960MHz
    • GSM 1800: 1710 to 1880MHz
    • GSM 1900: 1850 to 1990MHz
    • UMTS: 1920 to 2170MHz
  • 50Ω impedance
  • Maximum 10W pulsed acc. global system for mobile communications (GSM) standard load capacity
  • >12dB return loss
  • 3dBi gain
  • RG 174 low loss cable
  • Magnetic mount

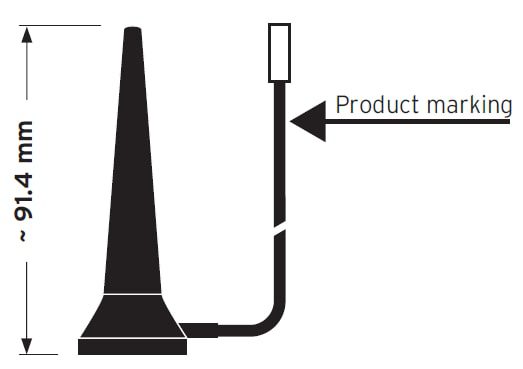

Technical Drawing

TE Hirschmann Mobility Cellular (2G/3G/4G/LTE) Magnetic Mount Antennas
