TE Hirschmann Mobility AM/FM (LW/MW/SW/BandII) Antenna

TE Connectivity’s Hirschmann RAD 015-108 RD S AM/FM (LW/MW/SW/BandII) Antenna features an amplifier embedded into the antenna base. The power supply for the amplifier features a twin function cable (phantom feed) with an optional separate +12V wire. TE Connectivity / Hirschmann RAD 015-108 RD S AM/FM (LW/MW/SW/BandII) Antenna is a screw mount, road vehicle roof mount antenna.

Features

  • Amplifier embedded in the antenna base
  • Twin function cable (phantom feed) optional separate +12V wire
  • Road vehicle roof
  • Screw mount

Specifications

  • Frequency range
    • AM: 150kHz to 6.2MHz
    • FM: 87MHz to 108MHz
  • -40°C to +85°C temperature range
  • 150Ω impedance
  • 12 VDC (9VDC to 16VDC) supply voltage

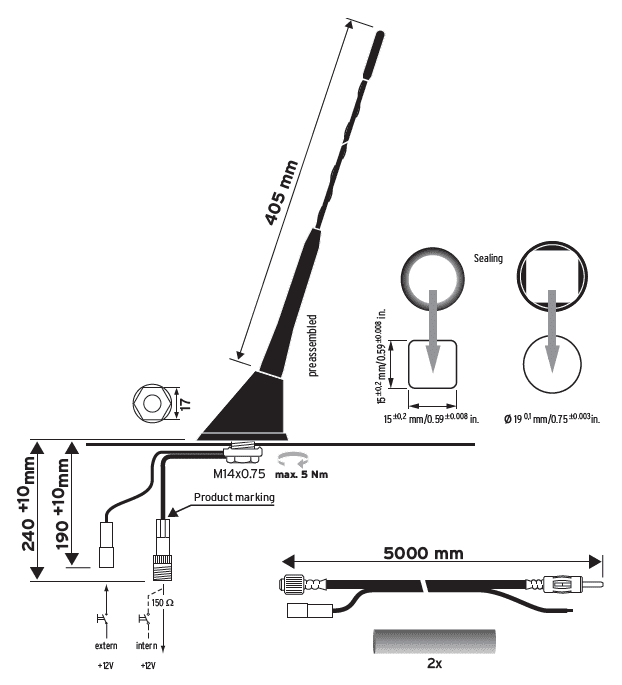

Technical Drawing

TE Hirschmann Mobility AM/FM (LW/MW/SW/BandII) Antenna
