TE Hirschmann Mobility AM/FM / DAB Rooftop Vehicle Antenna

TE Connectivity’s Hirschmann Mobility RDA 015-1450 RD S AM/FM (MW/BandII) / DAB (BandIII/L-Band) Rooftop Vehicle Antenna features flex mast. The antenna has an amplifier integrated into the antenna base and a remote power feed for AM/FM and DAB amplifier. TE Connectivity / Hirschmann Mobility RDA 015-1450 RD S AM/FM(MW/BandII) / DAB (BandIII/L-Band) Rooftop Vehicle Antenna is a screw mount antenna for road vehicle roofs.

Features

Antenna with flex mast
Amplifier integrated into the antenna base

Remote power fed for AM/FM and DAB amplifier
Road vehicle roof screw mount

Specifications

Frequency range
- Band III: 174MHz to 240MHz
  L-Band: 1452MHz to 1492MHz
50Ω impedance
Amplification
- Band III: >15dB
- L-Band: >10dB

VSWR
- Band III: <2.5
- L-Band: <2
9V_DC to 16V_DC (remote fed) supply voltage
35 ±5mA @ 12 ±0.1V_DCcurrent consumption

TE Hirschmann Mobility AM/FM / DAB Rooftop Vehicle Antenna

Features

Specifications

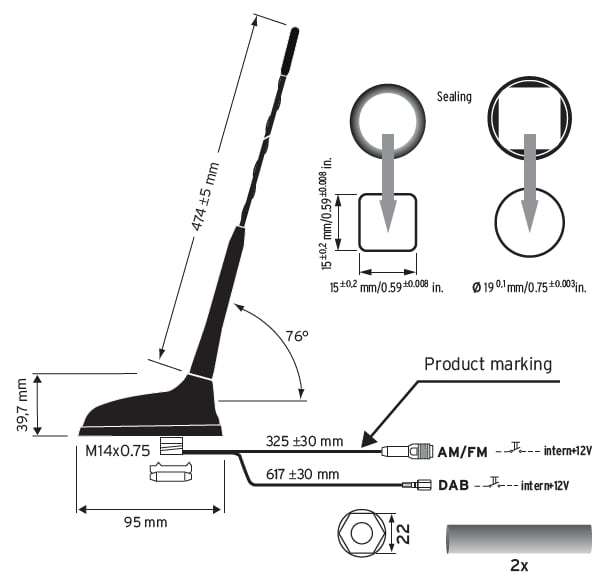

Technical Drawing
