TE Connectivity Tool-less Receptacle Assembly & Gasket

TE Connectivity’s Tool-less Receptacle Assembly and Gasket is an ANSI C136.41 compliant rotatable and hand rotatable up to 355° degrees for outdoor luminaires. These outdoor luminaires require NEMA based socket and the device offers standard NEMA socket interface with a wide range of photo controls. The tool-less receptacle assembly and gasket prevents wire tangling and/or stress inside the lighting fixture. The device allows hand assembly to the lighting fixture that makes for ease of assembly without tools. Typical applications include street and area lighting, roadway, commercial outdoor lighting (parking lots and car dealerships), and photo controls.

Features

Allows installers to optimize the positioning of the photo control with 355° degree rotation
Prevents wire tangling and/or stress inside the lighting fixture
Hand assembly to the lighting fixture during manufacturing makes for ease of assembly without tools

Simplifies rotation and reduces the installation time required to position the photo control
Provides IP55 rating to the luminaire when mated with Endurance N control bases
Standard NEMA socket interface accepts a wide range of photo controls

Specifications

15A maximum and 480V_AC maximum power contacts
1.5A maximum and 30V_DC signal contacts
12lbs pull force to lift and rotate the connector
Conforms to dimensional requirements of ANSI C136.41-2013

Offer a 5 and 7 position version:
- 5 position: 3 power contacts + 2 dimming/signal contacts
- 7 position: 3 power contacts + 4 dimming/signal contacts

Applications

Street and area lighting
Roadway

Commercial outdoor lighting (parking lots and car dealerships)
Photo controls

TE Connectivity Tool-less Receptacle Assembly & Gasket

Features

Specifications

Applications

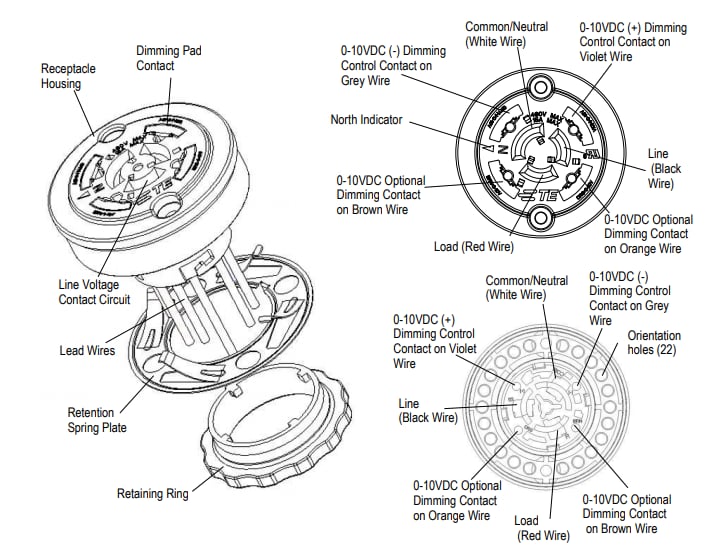

Construction Overview
