TE Connectivity SPE T1 Industrial Connectors IP20

TE Connectivity’s SPE T1 Industrial Connectors IP20 are Single Pair Ethernet (SPE), specifying Ethernet transmission over only one pair of copper wires. These industrial connectors IP20 support Power over Data Line (PoDL), which enables powering the remote device via the same pair of wires. The SPE T1 connectors feature up to 1Gb/s communication, IEC63171-6 standardized interface, -40°C to 85°C operating temperature range, and 60V_DC operating voltage. These industrial connectors IP20 are more flexible and have a small diameter and less heavy cables that enable the application to move faster and use less energy. The SPE T1 industrial connectors IP20 meet IEC 63171-6 and UL1977 standards and are ideally used in sensors, actuators, switches, machinery, and robotics.

Features

One twisted pair of cable
Up to 1Gb/s communication

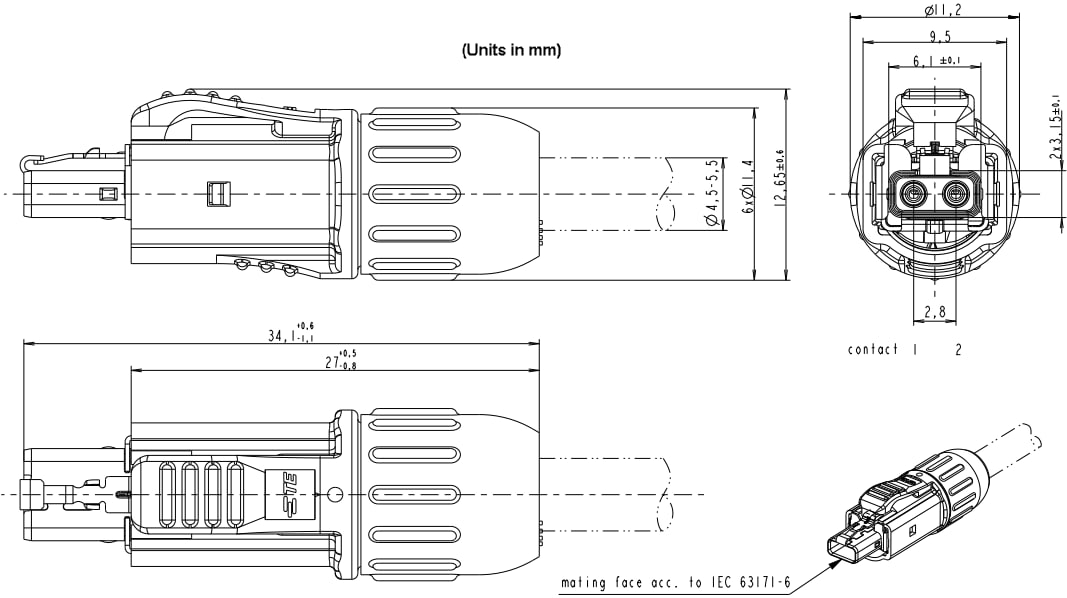

IEC63171-6 standardized interface
Small diameter, more flexible, and less heavy cables enable the application to move faster and use less energy
360° shielding
Small connector form factor allows miniaturization in next-generation applications

PoDL support

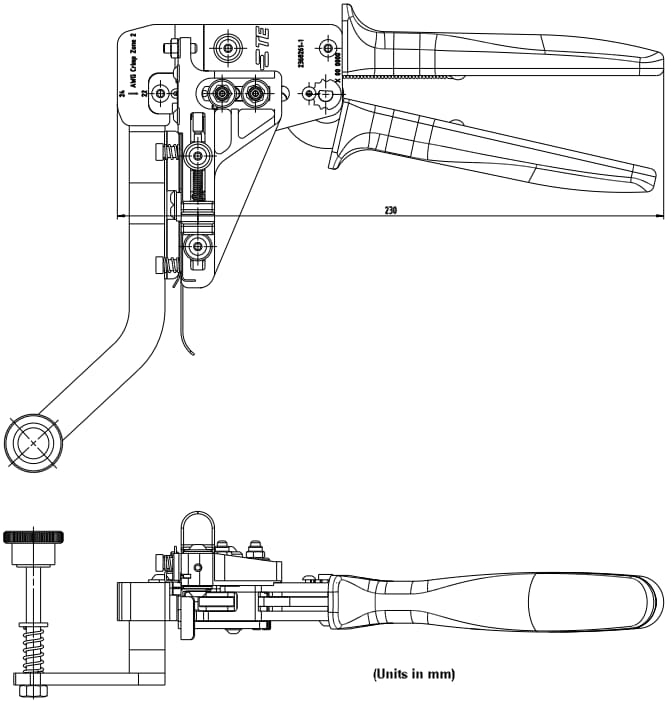

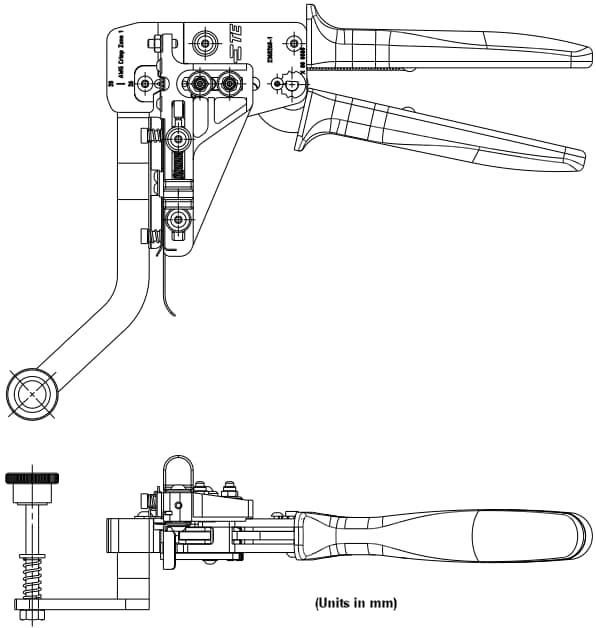

Easy and quick cable connector assembly reduces installation cost

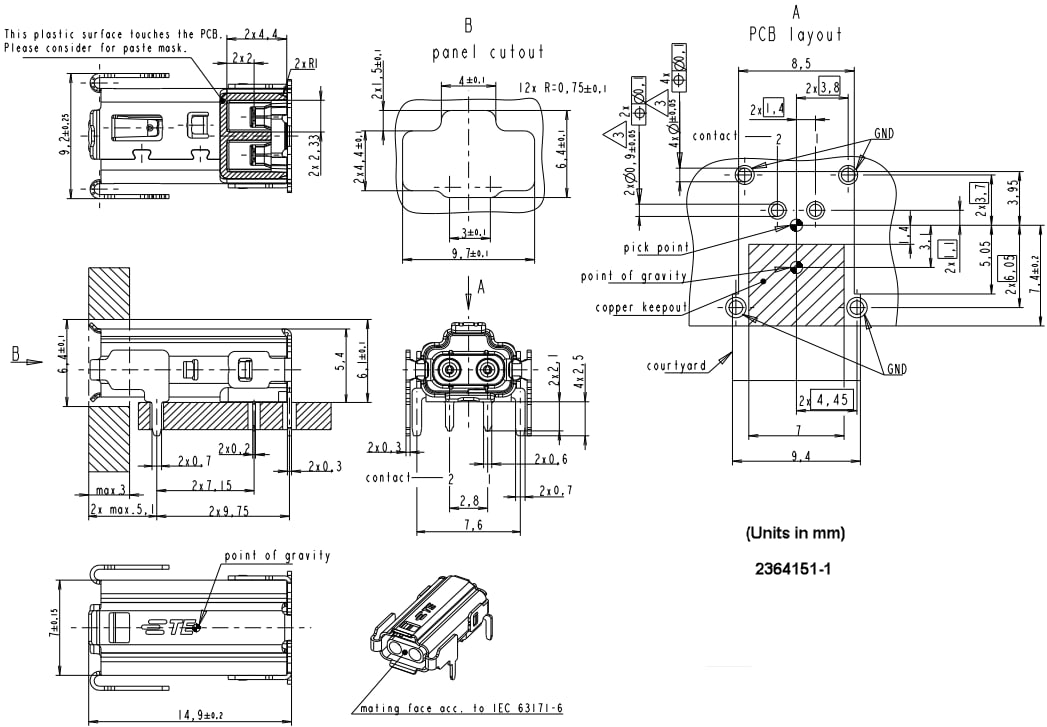

Reflow solderable SPE board connector supports latest industrial assembly processes

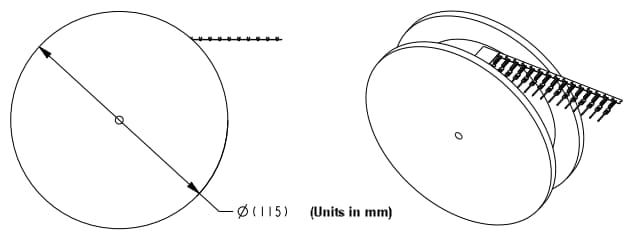

Cable connector uses highly reliable crimp contacts that reduce downtime
