TE Connectivity SM Metal Film Moulded SMD Power Resistors

TE Connectivity’s SM Metal Film Moulded SMD Power Resistors offer a low profile case design with flexible tinned copper terminations for reliable solder joints. The flameproof coated (UL94V-0) resistors are available in four ratings up to 7W in a very wide value range. The metal film SM series also withstands higher temperatures (-55°C to +200°C) associated with reflow, vapor phase, or infrared (IR) manufacturing processes without degradation.

Features

Low profile design
Very wide value range
Ideal for power circuitry

Available in 4 ratings up to 7W
Flameproof UL94V-0 coating

Applications

Consumer electronics
Telecommunications
Contrtol instrumentation

Specifications

1% or 5% resistance tolerance
2W to 7W power rating range
300V to 750V maximum operating voltage range
-55°C to +200°C operating temperature range
10,000MΩ insulation resistance at 500V_DC
±100ppm/°C temperature coefficient of resistance

±0.5% short time overload
±1% rated load
±1% (7W = ±5%) load life
±1% (7W = ±5%) humidity load life
95% coverage solderability

TE Connectivity SM Metal Film Moulded SMD Power Resistors

Features

Applications

Specifications

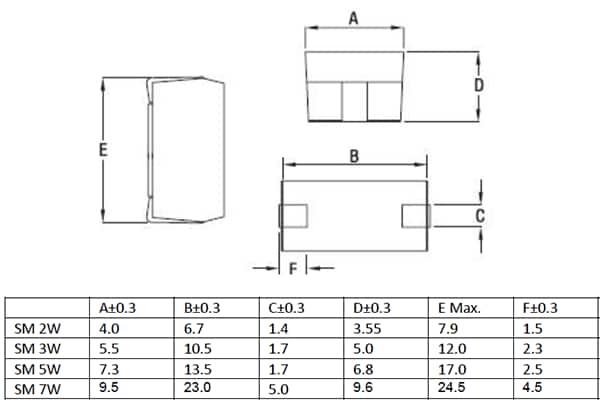

Dimensions: mm
