TE Connectivity Slimline PCB Relay SNR

TE Connectivity’s (TE) Slimline PCB Relay Signal-to-Noise Ratios (SNRs) feature a protection class II reinforced insulation, 170mW sensitive coil, and strong coil pins for DIN-rail sockets. The relay SNRs are only 5mm wide and offer high-functioning and packaging density. TE Slimline PCB Relay SNRs provide cadmium-free contacts and are ideal for interface technology, programmable logic controller (PLC), timer, and centralized/decentralized heating applications.

Features

  • 5mm width
  • 170mW sensitive coil
  • Reinforced insulation, protection class II
  • Strong coil pins for DIN-rail socket
  • Allows high-function density
  • Cadmium-free contacts
  • Flat pack version available

Applications

  • Interface technology
  • PLCs
  • Timers
  • Centralized and decentralized heating

Specifications

  • 250VAC rated voltage
  • 400VAC max switching voltage
  • 6A rated current
  • 10A limiting making current
  • 1500VA max breaking capacity
  • 100mA min recommended contact load at 12V
  • -40°C to +85°C ambient temperature

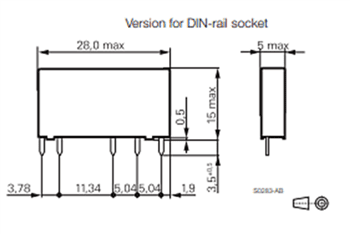

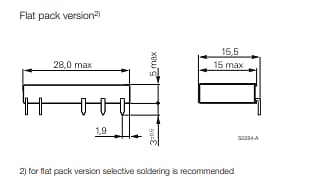

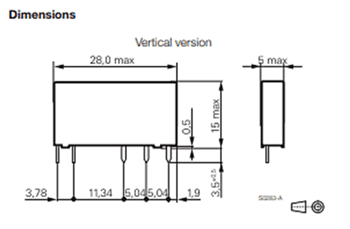

Dimensions

Chart - TE Connectivity Slimline PCB Relay SNR

Chart - TE Connectivity Slimline PCB Relay SNR

Chart - TE Connectivity Slimline PCB Relay SNR
