TE Connectivity RP40 lite Wireless Access Omnidirectional Antennas

TE Connectivity’s RP40 lite Wireless Access Omnidirectional Antennas provide high-performance connectivity for current and emerging 4G and 5G frequencies. These antennas support all major global 5G and 4G/LTE bands, covering 617MHz to 6000MHz frequencies. The antennas are incorporated with 4×4 MIMO technology and provide enhanced data rates and bandwidth with extremely consistent performance. These RP40 lite antennas are available in 4- or 5-port variants with a fifth port as an optional port for GNSS coverage. The omnidirectional antennas are suitable for use globally on cellular networks and with any network operator. Typical applications include primary connectivity, Fixed Wireless Access (FWA), failover support, IoT device connections, and private networks.

Features

Global LTE and 5G coverage (617MHz to 6000MHz)
Consistent omnidirectional patterns across all bands, providing stable reception
Extensive mechanical and environmental testing, including UV, flammability, humidity, impact, vibration, and shock
Integrated 5m (16ft) cables for easier installation

Supplied with all brackets and mounting hardware
Includes all the necessary mounting hardware
- Desk/table mount
- Direct wall mount
- Offset wall mount
- Pole mount

Applications

Fixed Wireless Access (FWA)
- Primary connectivity
- Failover support

IoT device connections
Private networks

TE Connectivity RP40 lite Wireless Access Omnidirectional Antennas

Features

Applications

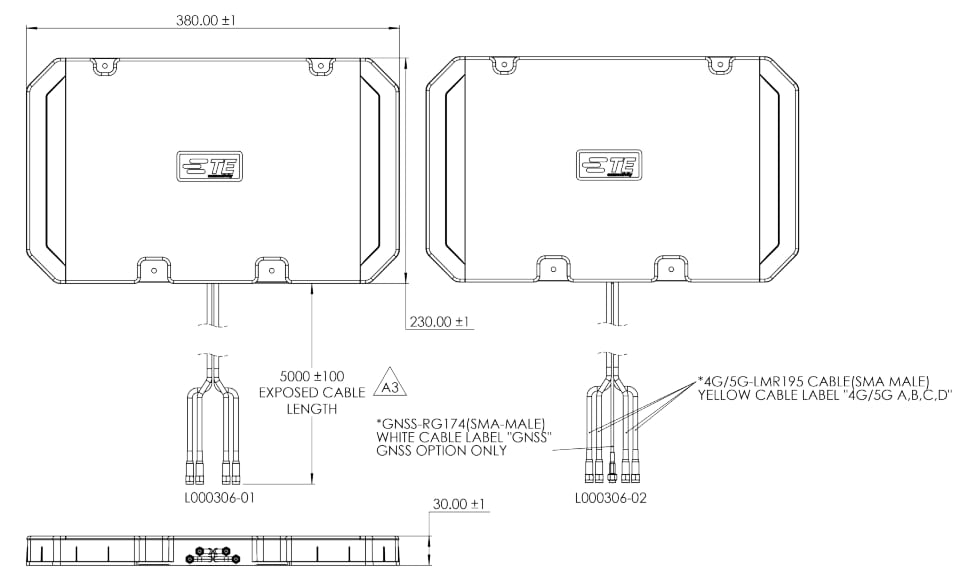

Mechanical Diagrams

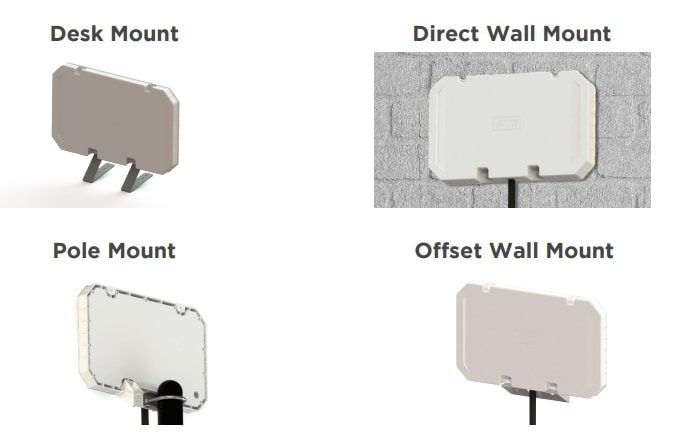

Mounting Options
