TE Connectivity Power Versa-Lock 5.0 Rectangular Power Connectors

TE Connectivity’s Power Versa-Lock 5.0 Rectangular Power Connectors are for wire-to-wire applications and offer a flexible power solution that provides a current rating of up to 15A. TE Power Versa-Lock 5.0 Connector series provides an optional IP67-rated perimeter interface and gang seals to offer waterproofing capabilities. The series offers a tab-and-receptacle contact design with four points of contact for higher reliability. A connector mounting clip on the cap housings helps reduce connector movement for high-vibration applications like washing machines. This feature replaces the need for manually installing wire ties to hold mounting clips, helping to reduce the manual labor required in the assembly process.

Features

5.0mm centerline spacing
Flexible housing design for unsealed and sealed applications
Current rating up to 15A
600V voltage rating
Position sizes
- 1×1, 1×2, 1×3, 1×4 not yet tooled, 3×3 in development (single row)
- 2×3 in-line and also a Twist and Lock cap option for refrigeration (dual row)
18° angled twist-and-lock connector allows for condensation to drip away from the connection
Housings are UL 94V-0, GWT in development

Tab and receptacle contact system
26AWG to 14AWG wire range
IP67 optional sealing system using gang seals
Perimeter interface seal for lower mating force
Optional accessories

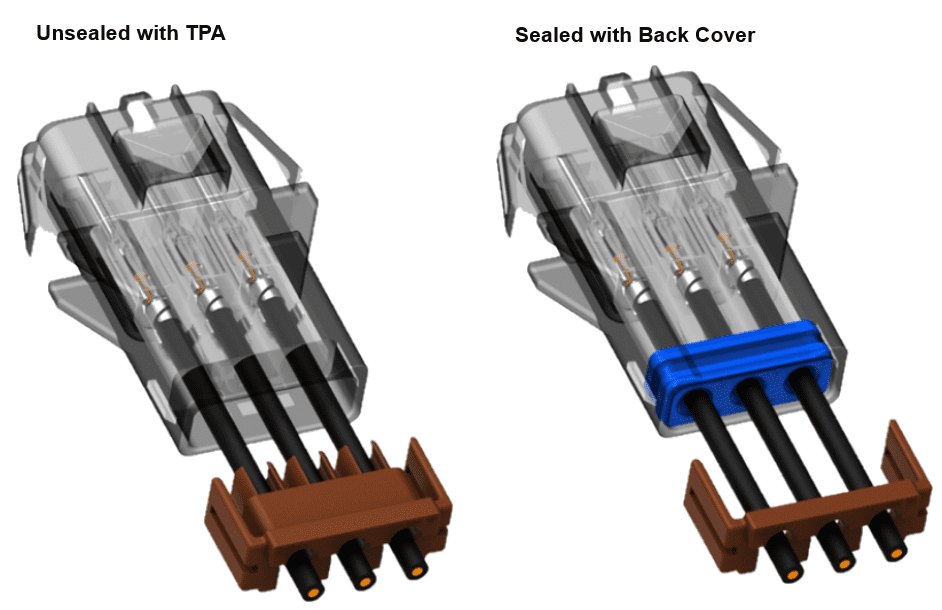

- Terminal Position Assurance (TPA) for unsealed 2×3 applications
- Back covers for sealed applications 1×1, 1×2, 1×3
- TPAs cannot be used with seals
Connector mounting clip feature on cap housing for use in applications where connector would not move (vibration, harsh environments)

Applications

Sealed and unsealed
- White goods
