TE Connectivity / Potter & Brumfield SSR3 3-Phase Solid State Relays

TE Connectivity’s Potter & Brumfield SSR3 3-Phase Solid State Relays feature three individual single-phase solid-state relays packaged in a single housing with a common input, to energize each SSR simultaneously. With load ratings ranging from 10A to 75A at 480V_AC, the SSR3 devices are available in a uniquely wide range of part numbers including AC and DC input options. This allows users an option to reduce the wiring complexities, assembly time reduction, and space utilization especially in applications where three-phase loads are to be operated.

Features

Provides a compact, space-saving panel solution
Removes panel wiring complexities
Ability to switch various load options
Reduces assembly time
LED indicator
Output
- SCR for medium to high industrial loads
- TRIAC for low industrial loads

Zero voltage and random voltage turn-on versions
AC and DC input versions
Safety cover meet IP20 protection
Panel mountable
Epoxy filled
UL94-V0 grade engineering plastics
Transient voltage protection by external MOVs

Applications

Blow molding machines
Coffee machines
Conveyor trolley

Industrial furnaces
Motor control
Plastic injection machines

Specifications

90V_AC to 280V_AC/4V_DC to 32V_DC input voltage range
10A to 75A output load range
48V_AC to 480V_AC load voltage range
4000Vrms minimum optical isolation voltage

Temperature ranges
- -30°C to +80°C operating
- -30°C to +100°C storage

Resources

Datasheet
SSR3 Introduction
SSR3 Flyer

TE Connectivity / Potter & Brumfield SSR3 3-Phase Solid State Relays

Features

Applications

Specifications

Resources

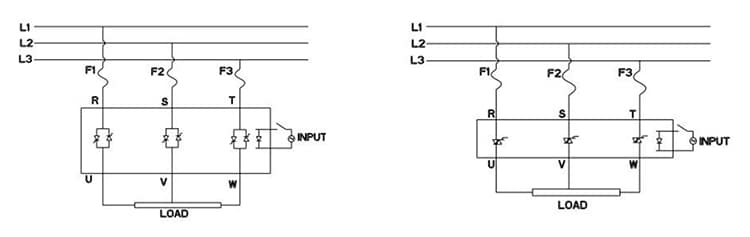

Operating Diagrams

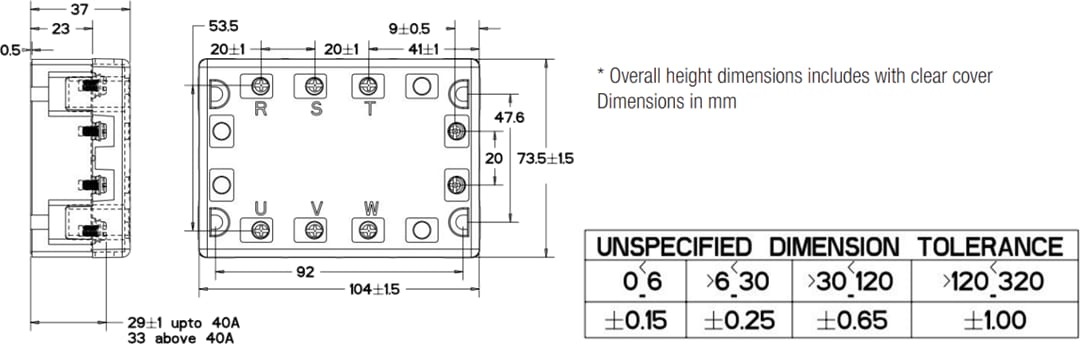

Mechanical Drawing
