TE Connectivity / Linx Technologies UAM Wi-Fi® 6E/Wi-Fi 7 Embedded Antennas

TE Connectivity’s (TE) Linx Technologies UAM Wi-Fi® 6E and Wi-Fi 7 Embedded Antennas offers a 6GHz band for Wi-Fi 6E, Wi-Fi 7, BLUETOOTH®, and ZigBee® applications. The embedded antennas’ unique module assembly can be mounted on a metal chassis using a snap-in feature. The snap-in feature eases assembly and coding, allowing unambiguous mounting direction. TE Linx UAM Wi-Fi 6E and Wi-Fi 7 Embedded Antennas are available in multiple cable lengths and connector options.

Features

6GHz band for Wi-Fi 6E, Wi-Fi 7, BLUETOOTH, and ZigBee
Metal chassis-mounted antenna module assembly

Snap-in feature for easy assembly and coding for unambiguous mounting direction
Multiple cable length and connector options available

Specifications

Frequency range (varied by cable length/options)
- 2400-2500MHz
- 5150-5875MHz
- 5925-7125MHz
Peak gain (varied by cable length/options)
- 0.4dBi
- 2dBi
- 3.4dBi

Average gain (varied by cable length/options)
- -3.8dBi
- -3.5dBi
- -3.9dBi
10W power handling
50Ω feed point impedance
-40°C to +85°C operating and storage temperature

TE Connectivity / Linx Technologies UAM Wi-Fi® 6E/Wi-Fi 7 Embedded Antennas

Features

Specifications

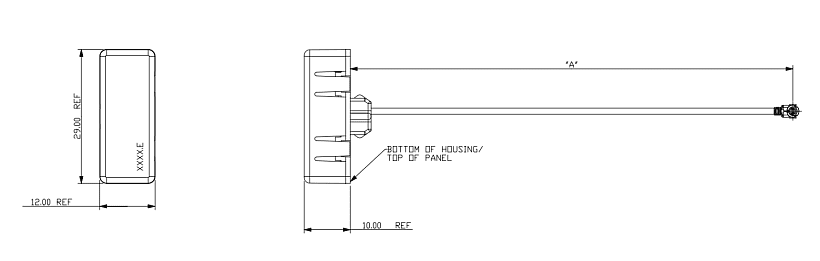

Dimensions
