TE Connectivity / Linx Technologies LPW ISM/WLAN/WiFi Panel-Mount Dipole Antenna

TE Connectivity / Linx Technologies LPW ISM/WLAN/WiFi Panel-Mount Dipole Antenna offers single-band 2.4GHz panel mount antenna options for BLUETOOTH^®, ZigBee^®, and other Wi-Fi^®/WLAN application. These antennas provide equivalent performance to LCD and LCW connector mount antennas. The snap-in panel mount provides easy and secure installation and the hinged whip with 3-position detent allows optimal antenna positioning. A connection is made to the radio via a 125mm long, 1.13mm coaxial cable terminated in an MHF1/U.FL-compatible plug connector.

Features

Snap-in panel mount with 9.5mm (0.37″) diameter hole
93.7mm (3.69″) long
Hinged with detents for straight, 45°, and 90° positioning
MHF1/U.FL-compatible plug (female socket) connector attached to 125mm of 1.13mm coax cable
Omnidirectional radiation pattern

Applications

Single-band Wi-Fi/WLAN/802.11
- WiFi 4
2.4GHz applications
- Bluetooth
- ZigBee

Smart home networking
Sensing and remote monitoring
Internet of Things (IoT) devices
Gateways

Specifications

2.4GHz to 2.485GHz frequency range
1.5 maximum VSWR
-14.6 maximum return loss
2.8dBi peak gain
-1.0dBi average gain
83% efficiency
Linear polarization

Omnidirectional radiation
10W maximum power
1/2-wave wavelength
Dipole electrical type
50Ω impedance
6.1g (0.22oz) in weight
-20°C to +85°C operating temperature range

TE Connectivity / Linx Technologies LPW ISM/WLAN/WiFi Panel-Mount Dipole Antenna

Features

Applications

Specifications

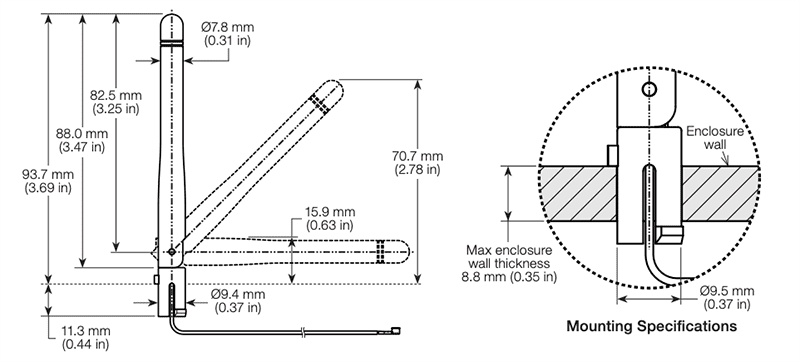

Dimensions
