TE Connectivity / Linx Technologies ANT-W63-FPC-UFL-100 WiFi 6 Antenna

TE Connectivity / Linx Technologies ANT-W63-FPC-UFL-100 WiFi 6 Antenna is a flexible embedded multiband antenna that offers excellent performance for WiFi 6E applications in the 6GHz band. The flexibility and adhesive backing makes the antenna easy to mount in unique and custom enclosures while enabling protection from tampering or accidental damage. This WiFi 6 antenna provides a ground plane independent dipole embedded antenna solution compared with performance to an external antenna.

The ANT-W63-FPC-UFL-100 WiFi 6 antenna operates from 5925MHz to 7125MHz frequency range. This WiFi 6 antenna connects with the radio via a 100mm (3.94″) long and 1.13mm coaxial cable terminated in an MHF1/U.FL-compatible plug connector. Applications include complete WiFi/WLAN coverage, Internet of Things (IoT) devices, smart home networking, and sensing and remote monitoring.

Features

Performance at 5925MHz to 7125MHz frequency range:
- ≤ 2.6 VSWR
- 6.9dBi peak gain
- 67% efficiency
Ground plane independent dipole antenna
Compact and low-profile:
- 110mm x 20mm x 0.2mm dimensions

MHF1/U.FL-compatible plug (female socket) on 100mm of 1.13mm coaxial cable
Adhesive backing permanently adheres to nonmetal enclosures using 3M 467MP™/200MP adhesive
Flexible to fit in challenging enclosures

Specifications

Linear polarization
Omnidirectional radiations
2W maximum power
½-wave wavelength

50Ω impedance
110.0mm x 20.0mm x 0.2mm (4.33″ x 0.80″ x 0.01″)
-40°C to 85°C operating temperature range

Applications

Complete WiFi/WLAN coverage:
- 802.11b/g
- WiFi 4 (802.11n)
- WiFi 5 (802.11ac)
- WiFi 6 (802.11ax)
- WiFi 6E (802.11ax)
U-NII bands 1 to 4 and 5 to 8 (proposed)
2.4GHz ISM applications:
- Bluetooth^®
- ZigBee^®

Internet of Things (IoT) devices
Smart home networking
Sensing and remote monitoring

TE Connectivity / Linx Technologies ANT-W63-FPC-UFL-100 WiFi 6 Antenna

Features

Specifications

Applications

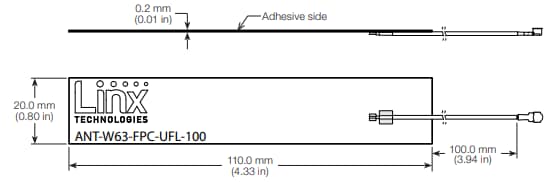

Dimensions
