TE Connectivity / Linx Technologies ANT-W63-CW-RCS WiFi® 6/6E/7 Antennas

TE Connectivity / Linx Technologies ANT-W63-CW-RCS WiFi^® 6/6E/7 Right-Angle Whip antennas are compact monopole antennas designed for WiFi 6/6E/7 applications in the 2.4GHz, 5GHz, and 6GHz bands. These antennas come with a length of 54mm and may be used with metallic and non-metallic enclosures. The right-angle rotating design of the antennas allows them to be well-positioned for optimum performance. The ANT-W63-CW-RCS right-angle antennas connect via an SMA plug (male pin) or RP-SMA plug (female socket) connector. These right-angle whip antennas offer a 50Ω impedance, 5W maximum power, and operate between -20°C to 85°C temperature range. Typical applications include sensing and remote monitoring, Internet of Things (IoT) devices, and smart home networking.

Features

Rotating base allows for optimal positioning
Connects through an SMA plug (male pin) or RP-SMA plug (female socket) connector

Specifications

Performance at 2.4GHz to 2.485GHz:
- 2.2 ≥ VSWR (maximum)
- 7.7dBi peak gain
- 42% efficiency
Performance at 5.150GHz to 5.850GHz:
- 2.2 ≥ VSWR (maximum)
- 5.4dBi peak gain
- 72% efficiency
Performance at 5.925GHz to 7.125GHz:
- 2.7 ≥ VSWR (maximum)
- 6dBi peak gain
- 71% efficiency

50Ω impedance
Omnidirectional radiation
Linear polarization
5W maximum power
1/4-wave wavelength
54mm x 9.4mm dimensions
8.4g weight
-20°C to 85°C operating temperature range

Applications

WiFi/WLAN coverage:
- WiFi 7 (802.11be)
- WiFi 6E (802.11ax)
- WiFi 6 (802.11ax)
- WiFi 5 (802.11ac)
- WiFi 4 (802.11n)
- 802.11b/g

2.4GHz ISM:
- Bluetooth^®
- ZigBee^®
U-NII bands 1-8
Internet of Things (IoT) devices
Smart home networking
Sensing and remote monitoring

TE Connectivity / Linx Technologies ANT-W63-CW-RCS WiFi® 6/6E/7 Antennas

Features

Specifications

Applications

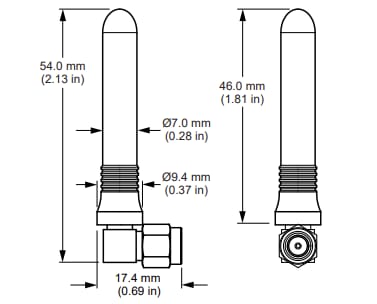

Dimensional Diagram
