TE Connectivity / Linx Technologies ANT-GNFPC-SAHL1 Flexible Embedded L1 GNSS Antennas

TE Connectivity’s (TE) Linx Technologies ANT-GNFPC-SAHL1 Flexible Embedded L1 GNSS Antennas are 13mm x 13mm adhesive flexible printed circuit (FPC) antennas for global navigation satellite system (GNSS) applications. The antennas feature a ground plane independent dipole embedded antenna and support GPS, Galileo, Beidou, and QZSS systems in L1, E1, and B1 bands. The ANT-GNFPC-SAHL1 antennas offer a 3M 467MP/200MP adhesive backing, allowing the series to adhere to non-metal enclosures permanently. TE Linx Technologies ANT-GNFPC-SAHL1 Flexible Embedded L1 GNSS Antennas operate within a 1559MHz to 1606MHz frequency range and provide an MHF1/U.FL-type plug (female socket) or MHF4-type plug (female socket) connector termination options. The attached coaxial cable enables radio connection and other global navigation and timing solution applications.

Features

Compact, low profile
13mm x 13mm package size
Adhesive FPC antennas
Permanently adheres to non-metal enclosures using 3M 467MP/200MP adhesive

Ground plane independent dipole antenna
Fits in challenging enclosures
MHF1/U.FL-type plug (female socket) connector option
MHF4-type plug (female socket) connector option

Applications

Global navigation
Timing solutions

Specifications

1559MHz to 1606MHz frequency range
GPS bands
- GPS L1C/L1C(A)
- Galileo E1
- Beidou B1C/B1I
- QZSS L1
- L1 (FDMA)
2.3 to 2.7 max VSWR
-8.1dBi to -6.6dBi return loss

3.1dBi to 5.2dBi peak gain
-4.4dBi to -2.3dBi average gain
39% to 62% efficiency range
Linear polarization
Omnidirectional radiation
50Ω impedance rating
2W max power rating
-40°C to +85°C operating temperature range

TE Connectivity / Linx Technologies ANT-GNFPC-SAHL1 Flexible Embedded L1 GNSS Antennas

Features

Applications

Specifications

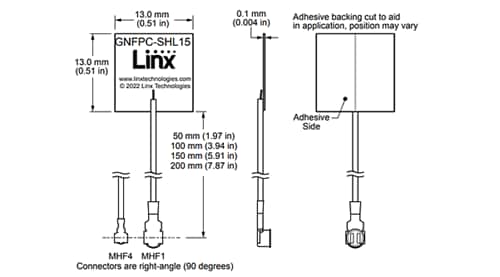

Dimensions
