TE Connectivity / Linx Technologies ANT-8/9-MMG2-SMA Magnetic 868/915MHz LPWA Antennas

TE Connectivity / Linx Technologies ANT-8/9-MMG2-SMA Magnetic 868/915MHz LPWA Antennas are designed for low-power wide-area (LPWA) applications such as LoRaWAN®, Sigfox®, Wi-Fi® HaLow™, ISM, and remote control. The integrated magnetic base is repositionable on ferrous, metallic surfaces. The TE Connectivity / Linx Technologies ANT-8/9-MMG1-SMA Antennas are ground plane independent dipole antennas that terminate in an SMA plug (male pin) connector on a 1-, 2-, or 3-meter length on RG-174/U coaxial cable.

Features

  • 862MHz to 876MHz performance
    • ≤ 1.4VSWR
    • 3.0dBi peak gain
    • 85% efficiency
  • 902MHz to 930MHz performance
    • ≤ 1.6VSWR
    • 3.0dBi peak gain
    • 86% efficiency
  • Ground plane independent dipole antenna
  • Only 88.5 mm (3.48 in) tall
  • Integrated magnetic base securely attaches to ferrous metallic surfaces and allows for repositioning
  • SMA plug (male pin) connection

Applications

  • Low-power, wide-area (LPWA) applications
  • LoRaWAN®, ITU-T Y.4480
  • Sigfox®
  • WiFi HaLow™ (802.11ah)
  • Remote control, monitoring and sensing
  • Internet of Things (IoT) devices
  • ISM applications

Specifications

  • Linear polarization
  • Omnidirectional radiation
  • 10W max power
  • 1/2-wave wavelength
  • Dipole
  • 50Ω impedance

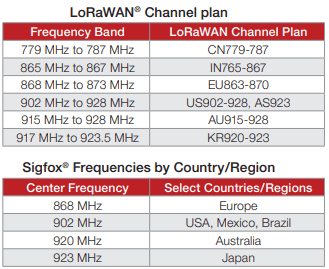

Frequency

Chart - TE Connectivity / Linx Technologies ANT-8/9-MMG2-SMA Magnetic 868/915MHz LPWA Antennas
