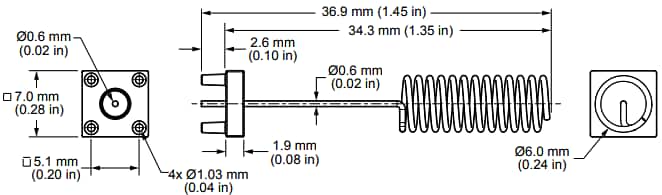

TE Connectivity’s (TE) / Linx Technologies 2.4GHz Vertical Helical Antenna is designed for 2.4GHz ISM frequency band applications such as BLUETOOTH® and Zigbee®. This surface-mount antenna is constructed from 0.6mm diameter nickel-plated high-carbon steel, making it ideal for PCB-mount installations requiring a compact, rugged, and omnidirectional embedded antenna. The antenna features a 2400MHz to 2500MHz frequency range with performance at 2.4GHz, including 3dBi peak gain, 68% efficiency, and ≤1.8 voltage standing wave ratio (VSWR). TE / Linx 2.4GHz Vertical Helical Antenna offers dimensions of 36.9mm x 7mm x 7mm and an operating temperature range of -40°C to +80°C. This antenna is suitable for reflow- or hand-solder assembly, and the connector-style base ensures proper mounting for uniform performance in high-volume manufacturing.
