TE Connectivity / Laird External Antennas VersAnte L000321-01 Cellular Puck Antenna

TE Connectivity/Laird External Antennas VersAnte L000321-01 Cellular Puck Antenna offers 4G/5G cellular, Wi-Fi, and GNSS coverage in an extremely compact form factor. This 3-port ground plane-independent antenna can operate on both metallic and non-metallic surfaces. The L000321-01 cellular antenna supports CAT-M, CAT-1 to CAT-4, and NB-IoT technologies. This ruggedized puck antenna features an IP67 rating, making it an ideal solution for a broad range of IoT applications in indoor and outdoor environments. Typical applications include IoT endpoints, digital displays and signage, EV charging, smart lockers and storage, ticketing systems, smart terminals, and data monitoring.

Features

4G/5G Cellular, Wi-Fi, and GNSS from a single antenna
Supports CAT-M, CAT-1 to CAT-4, and NB-IoT technologies
Suitable for mounting on a variety of surfaces
Radome is paintable using commonly available spray paints (must not contain metal)

Versatile for a number of applications
Ground plane independent
Low profile and extremely compact form factor
Ruggedized and less prone to vandalization

Applications

IoT endpoints
Digital display and signage
EV charging
Ticketing systems

Smart lockers and storage
Smart terminals
Data monitoring

TE Connectivity / Laird External Antennas VersAnte L000321-01 Cellular Puck Antenna

Features

Applications

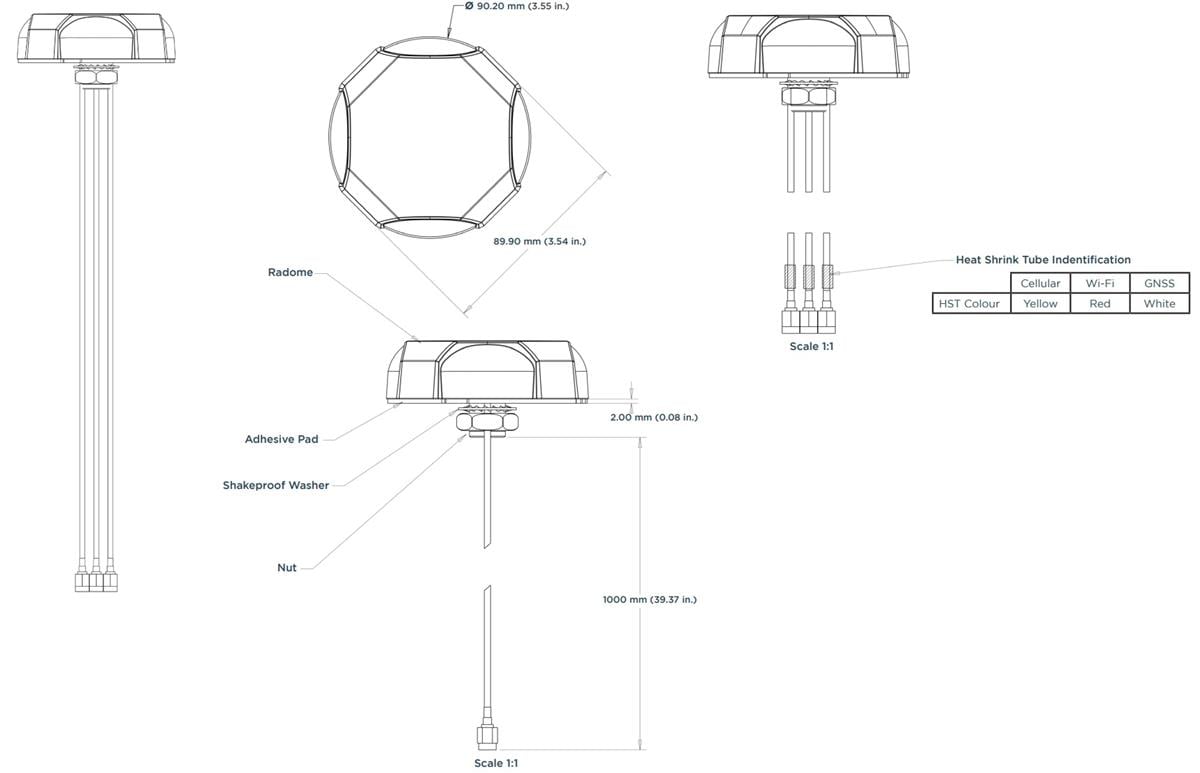

MECHANICAL DRAWINGS
