TE Connectivity L000641 SMT Mount NFC Antenna

TE Connectivity’s (TE) L000641 SMT Mount NFC Antenna is constructed for high-performance two-way read/write operating at a frequency rating of 13.56MHz. This compact antenna takes up only 20% of the PCB size compared with antennas routed on the PCB. Due to the unique size and SMT mounting design, this antenna is ideal for space-constrained applications. TE L000641 SMT Mount NFC Antenna offers a 35mm reading distance, -40°C to +85°C operating temperature range, and 7.8mm x 7mm x 5mm dimensions.

Features

Universal antenna module assembly
Coil on ferrite core antenna type for increased performance
Higher reading distance

Fully pick-and-place and SMT capable
Compact surface-mount design

Applications

Point-of-sale systems
Payment terminals
Digital ordering systems
Ticketing machines

Entry and access control systems
Data exchange systems
Quick-service restaurants

Specifications

13.56MHz frequency range
4.7µH self-inductance
0.25Ω DCR rating

35mm read distance
7.8mm x 7mm x 5mm dimensions
-40°C to +85°C operating temperature range

TE Connectivity L000641 SMT Mount NFC Antenna

Features

Applications

Specifications

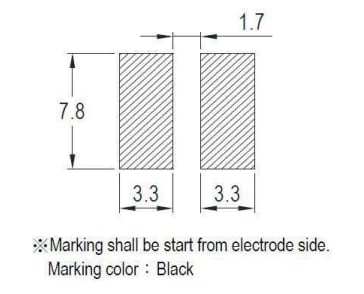

Footprint
